Product Details
Place of Origin: China
Brand Name: OFLYCOMM
Certification: ROHS/REACH
Model Number: 6222B-SRC
Payment & Shipping Terms
Minimum Order Quantity: 5/pcs
Price: USD 5.1-7/pcs
Packaging Details: Reel
Delivery Time: 15-40 workdays
Payment Terms: T/T
Supply Ability: 4000000pcs/month
Chipset: |
RTL8822CS |
Frequency: |
2.4GHz/5.8GHz |
Size: |
15.0x13.0x2.15mm |
Data Rate: |
867Mbps |
Power Supply: |
3.3V |
Type: |
5GHz WiFi Module |
Chipset: |
RTL8822CS |
Frequency: |
2.4GHz/5.8GHz |
Size: |
15.0x13.0x2.15mm |
Data Rate: |
867Mbps |
Power Supply: |
3.3V |
Type: |
5GHz WiFi Module |

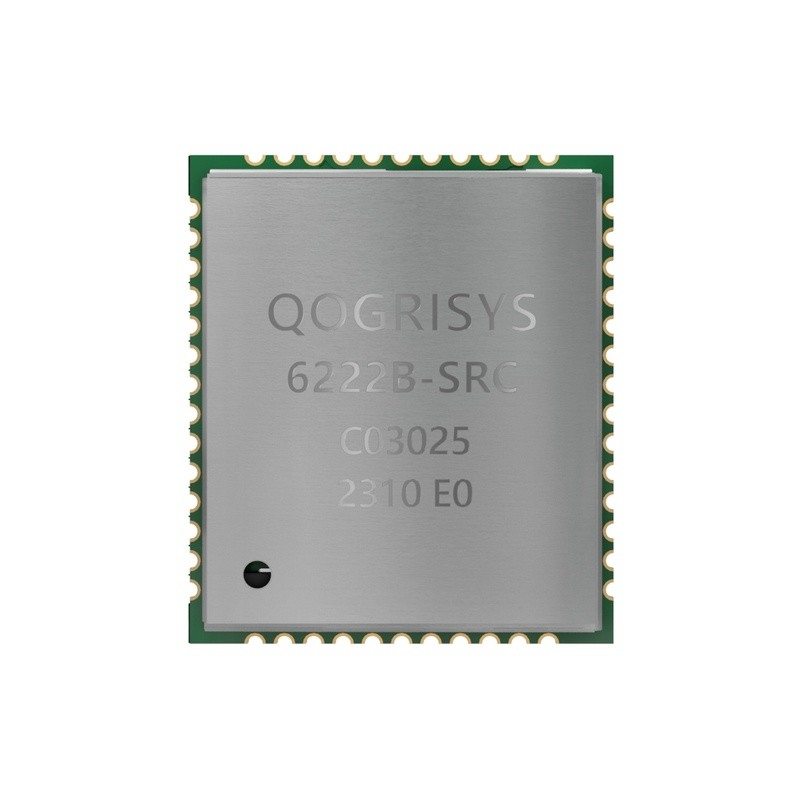

The wireless module complies with IEEE 802.11a/b/g/n/ac 2x2 MIMO standard and the speed can achieve upto 867 Mbps with dual stream in 802.11n. The integrated module provides SDIO interface for Wi-Fi,UART/PCM interface for Bluetooth.
5GHz WiFi Module Detailed Parameters
| Model No | 6222B-SRC |
| ProductDescription | Support Wi-Fi/Bluetooth functionalities |
| Dimenssion | 15.0x13.0x2.15mm |
| Wi-Fi Interface | SDIO |
| BT Interface | UART/PCM |
| Operating Temperature | 0° C to 70°C |
| Storage Temperature | -40° C to 85°C |
5GHz WiFi Module Recommended Operating rating
| Min. | Typ. | Max. | Unit | |
| Operating Temperature | 0 | 25 | 70 | deg.C |
| VCC33 | 3.15 | 3.3 | 3.45 | V |
| VDDIO | 1.7 | 1.8or3.3 | 3.45 | V |
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
& Commercial And OA Application
Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
Welcome to visit our website to learn more about 5ghz wifi module.
