Product Details
Place of Origin: China
Brand Name: OFLYCOMM
Certification: CE/FCC/SRRC/ROHS/REACH
Model Number: 6221C-PUC
Payment & Shipping Terms
Minimum Order Quantity: 5/pcs
Price: USD 3.5-5.0/pcs
Packaging Details: Reel
Delivery Time: 15-40 workdays
Payment Terms: T/T
Supply Ability: 4000000pcs/month
Part Number: |
6221C-PUC |
Type: |
Wifi Bluetooth Module |
BT Protocol: |
Bluetooth 4.2 |
Packing: |
Standard Packing |
Payment: |
TT/Credit Card/Alibaba |
Warranty: |
12 Months |
Part Number: |
6221C-PUC |
Type: |
Wifi Bluetooth Module |
BT Protocol: |
Bluetooth 4.2 |
Packing: |
Standard Packing |
Payment: |
TT/Credit Card/Alibaba |
Warranty: |
12 Months |

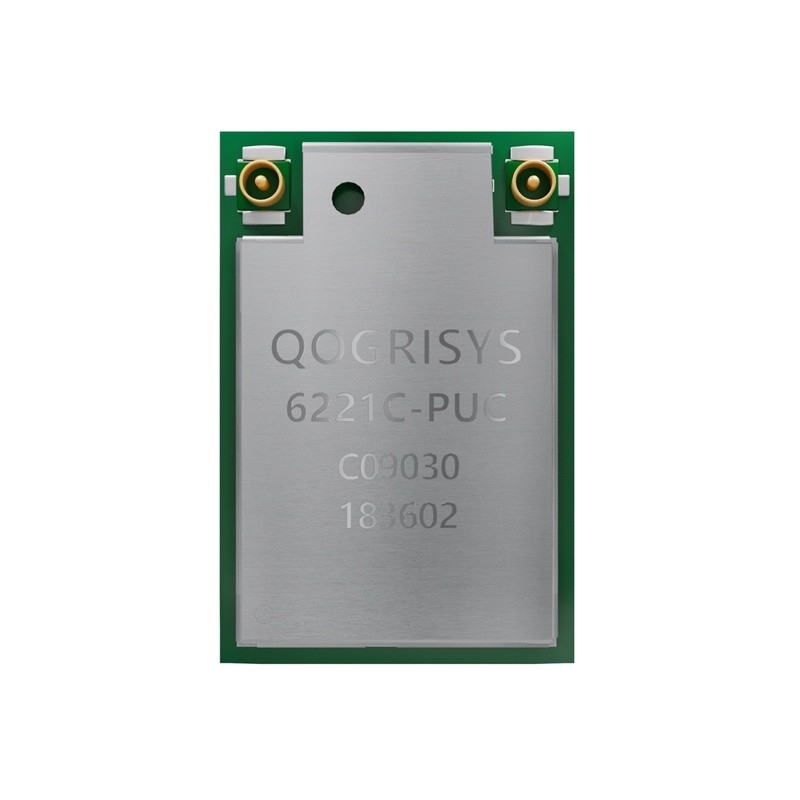

This wifi bluetoth module meets IEEE 802.11 a/b/g/n/ac 1x1 MIMO standard and it can achieve up to a speed of 433Mbps to connect the wireless LAN. The interface of wifi bluetoth module is pcie.This compact module is a total solution for a combination of Wi-Fi and Bluetooth V4.2 technologies. The module is specifically developed for all wifi devices.
|
Product Dimensions
|
L x W x H: 16x 12x 1.8 (typical) mm |
|
Support
|
WLAN-Bluetooth coexistence |
|
Frequency range
|
2.400 GHz ~ 2.497 GHz 4.900 GHz ~ 5.845 GHz |
|
Operating voltage
|
3.3V
|
|
Bluetooth
|
Class1 and Class2 |
|
Operating temperature
|
0°C to70°C |
1.This module requires a 3.3 volt supply for VCC
2.It is not 5V tolant,Connect RX or TX on 5V will destroy this module.
1X 6221C-PUC Wifi Bluetooth Module
