Place of Origin: | China |
---|---|
Brand Name: | OFLYCOMM |
Certification: | ROHS/REACH |

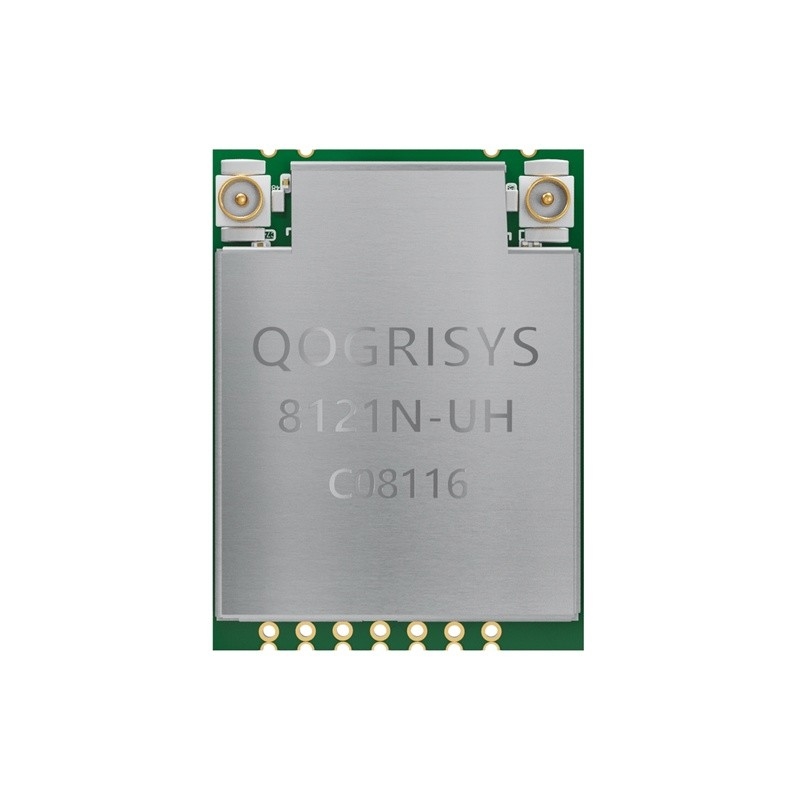

Model Number: | 8121N-UH |
Minimum Order Quantity: | 5/pcs |
Price: | USD 6-8.5/pcs |
Packaging Details: | Reel |
Delivery Time: | 15-40 workdays |
Payment Terms: | T/T |
Supply Ability: | 4000000pcs/month |
RF Chipset: | Qualcomm Atheros AR1021X | Working Frequency: | 5G Only |
---|---|---|---|
WLAN Host Interface: | USB 2.0 | Working Power Supply: | 5V Power Supply |
Output Power: | 17dBm | Main Application: | Gimbal Stabilizer For Smartphone&Camera |
High Light: | Atheros AR1021X Wireless Wifi Module,5G Embedded Wifi Module |
1.Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ.
2.802.11a/n 5G WLAN applications.
3.Dual-stream spatial mulitiplexing up to 300Mbps data rate.
4.Supports 20/40MHz bandwidth.
5.Supports USB interface for WLAN.
6.Integrated high power FEM.
NO | Name | Type | Description |
1 |
POWER_EN |
I |
Module working enable,High: power on,low: power off. 3.3V |
2 |
WPS |
I/O |
WiFi protected setup |
3 |
GND |
- |
Ground |
4 |
D+ |
I/O |
USB2.0 Data+ |
5 | D- | I/O |
USB2.0 Data- |
6 |
VDD5V |
P |
5V Power Input |
7 |
LED |
O |
Driving LED to indicate WiFi state |
8 |
GND |
- |
Ground |
9 |
RF1 |
I/O |
5G WiFi RF signal pin1 |
10 |
RF0 |
I/O |
5G WiFi RF signal pin0 |
11 |
GND |
- |
Ground |
