Customized Internal FPC Dual Band Antenna WiFi 2.4 5.8G With IPEX Connector

Customized Internal FPC Dual Band Antenna WiFi 2.4 5.8G With IPEX Connector

  • High Light

    high gain wifi antenna

    ,

    dual band antenna

  • Product Type
    FPC Antenna
  • Minimum Frequency
    2.4 GHz
  • Maximum Frequency
    5 GHz
  • Antenna Connector Type
    Flat Patch
  • Cable Type
    Coaxial Cable
  • Mounting Style
    Adhesive Mount
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    ROHS/REACH
  • Model Number
    ANT-F2458X-150
  • Minimum Order Quantity
    100/pcs
  • Price
    USD 0.4-1.0/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

Customized Internal FPC Dual Band Antenna WiFi 2.4 5.8G With IPEX Connector

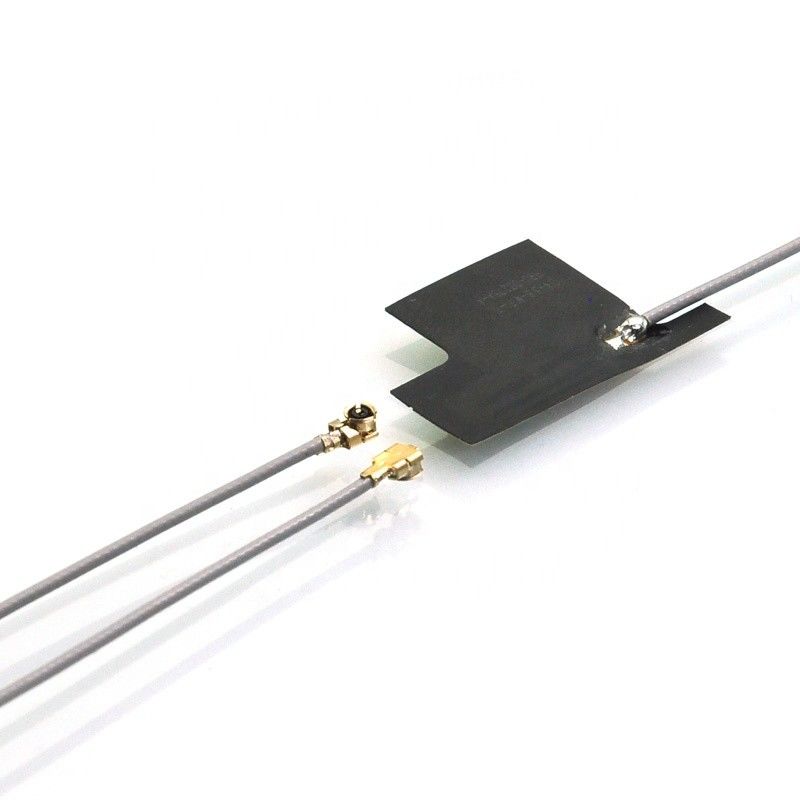

Customized Internal FPC Dual Band WiFi 2.4&5.8G RF Antenna With IPEX Connector

Description

This is internal Flexible Printed Circuit Dual Band WiFi antennas that cover the entire WLAN bands of 2.4 - 2.5 GHz and 4.9 – 5.85 GHz. It has a 150mm cable assembly with a standard IPEX connector for ease of connection to the board. With this small form factor and efficiency over50%, this is the perfect internal options for WiFi applications. The dual and wide-band coverage is a perfect solution for industrial applications and data transmission/communication especially in IoT devices.

Physical Specifications

Material

FPC

Color

Black

Operating temperature

 -40°C to 85°C

Store temperature

 -40°C to 95°C

Operating Frequency
2.400 GHz ~ 2.497 GHz (2.4 GHz ISM Band)
4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band)
Peak Gain
2dBi
Impedance
50Ω
Polarization Mode
Vertical/Linear

Used For

Zigbee, BLE/BT, WLAN (2.4 GHz, 5 GHz)
Global WiFi Systems
Data Transmission in IoT devices
Access points
Industrial Applications
Medical
Point of Sale
Handheld Devices
Transportation/Parking
Sensor Networks
Lighting
