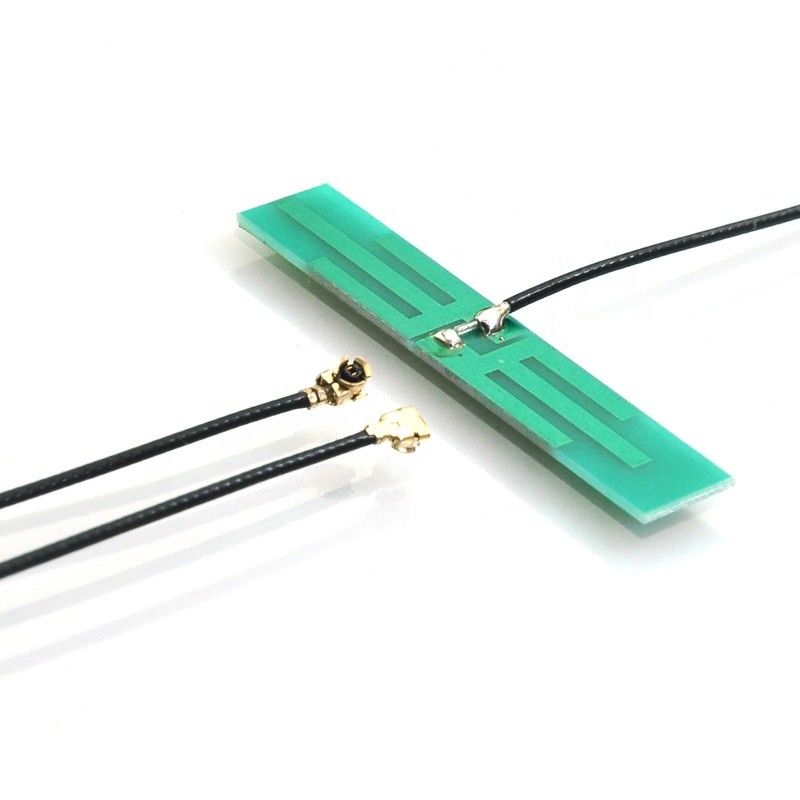

Long Range Patch Radio Frequency Antenna Dual Band Internal PCB 5GHz WiFi

Long Range Patch Radio Frequency Antenna Dual Band Internal PCB 5GHz WiFi

  • High Light

    high gain wifi antenna

    ,

    dual band antenna

  • Product Name
    2.4&5.8G RF Antenna
  • Working Freq
    2.4GHz/5.8GHz
  • Cable Length
    140mm
  • Connector
    IPEX
  • OEM Service
    Yes
  • Electrical Type
    Patch
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    ROHS/REACH
  • Model Number
    ANT-P2458X-140
  • Minimum Order Quantity
    100/pcs
  • Price
    USD 0.6-1.3/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

Long Range Patch Radio Frequency Antenna Dual Band Internal PCB 5GHz WiFi

Long Range Dual Band 2.4&5.8G RF Antenna Internal PCB 5GHz WiFi Antenna

Features

Dual band WiFi (covers 2.4 GHz and 4.9 – 5.85 GHz)
Low profile/small form factor
Adhesive backing
Lead free materials
RoHS Compliant Product

Specifications

Impedance

50Ω

VSVR

3.0Max

Gain(peak)

2dBi

Out Of Roundness

3dBi

Radiation

Omni-Directional

Polarization

Linear-Vertical

Contactor TypeFirst Generation IPEX

Application

IEEE 802.11 b/g/n WLAN System
Wireless Communication System
Wi-Fi / WiMAX / MIMO System

Note

Antennas are matched with modules,which can provide customers with the entire wireless solution.

External antenna can be directly tested without debugging. The embedded antenna (FPC/PCB antenna) needs to be matched and debugged with the customer’s device. All kinds of antennas support customized services.

If the product with built-in antenna, please contact us to make sure the placement and size of the antenna,ensure that the RF index reach the requirements.

Antenna is non-standard,the ones displayed on our website is widely used by our customers or the industry, which are just for reference.
