PCI-E Interface Wifi Audio Receiver Module Bluetooth Usb Module

PCI-E Interface Wifi Audio Receiver Module Bluetooth Usb Module

  • High Light

    data transmission module

    ,

    wifi transceiver module

  • Chipset
    RTL8821CE
  • WIFI Standard
    IEEE802.11a/b/g/n/ac
  • Interface
    PCIE
  • Size
    16.0 * 12.0 * 1.8mm
  • Antenna
    External Antenna
  • Type
    5ghz WiFi Module
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    CE/FCC/ROHS/REACH
  • Model Number
    6221C-PUC
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 3.9-5.5/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

PCI-E Interface Wifi Audio Receiver Module Bluetooth Usb Module

PCI-E Interface 5ghz WiFi Module Wireless Bluetooth 4.2 Module



5ghz Wifi Module Introduction

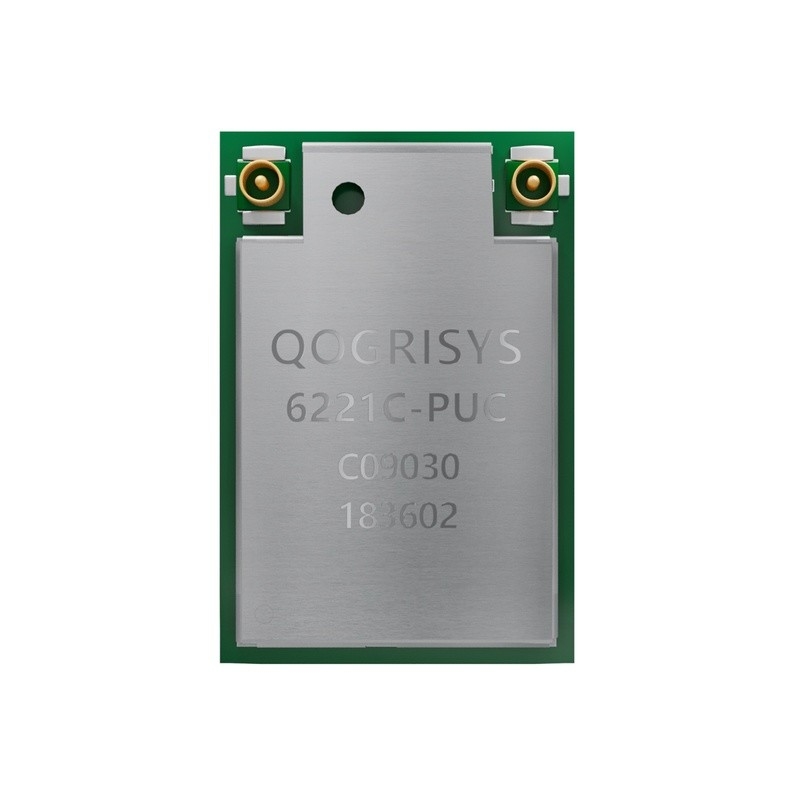

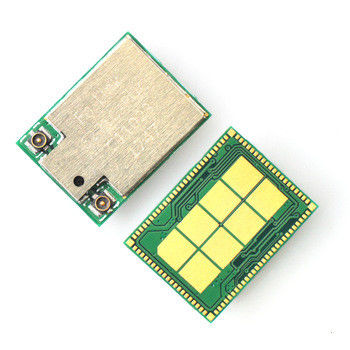

Type 6221C-PUC 5ghz wifi module is a very high performance module that includes 2.4GHz/5GHz WLAN and Bluetooth functionality for consumer grade applications. Based on Realtek RTL8821CE , the module provides IEEE 802.11a/b/g/n/ac (1x1) and Bluetooth 4.2+EDR.

5ghz Wifi Module Detailed Parameters

Model No 6221C-PUC Main Chipset RTL8821CE
Interface PCIE WiFi Standard IEEE802.11a/b/g/n/ac
Data Rate 433Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Android/Linux/Windows
Frequency 2.4/5.8GHz Power Supply 3.3V
Size 16.0*12.0*1.8mm RF Chain 1T1R
Operating Temperature 0° Cto 70°C Storage Temperature -55° Cto 85°C

5ghz Wifi Module Features

Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ 802.11ac, or 2.4G/5G 802.11n WLAN applications.

Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz

Supports low power PCI-e interface for WLAN and USB/PCM interface for Bluetooth.

Supports Bluetooth V4.2+HS, BLE and be backwards compatible with Bluetooth 1.2, 2.X+ enhance data rate.

5ghz Wifi Module Application Range

OTT/IPTV/DVB/STB,Tablet PC,Laptop,Smart TV,IPC/NCR,Industrial Controllers ,DVR,Doorbell,Projector,AR/VR,Printer/POS Terminal,Electronic Scale,Drone,Robot,HDMI Transmitter,Smart Gateway,Education,Toys and other Consumer Electronics

Note


Please engage with our sales team to determine if this module is suitable for your applications. Regarding sample request,please inform us the details of your project, thanks for your support.
