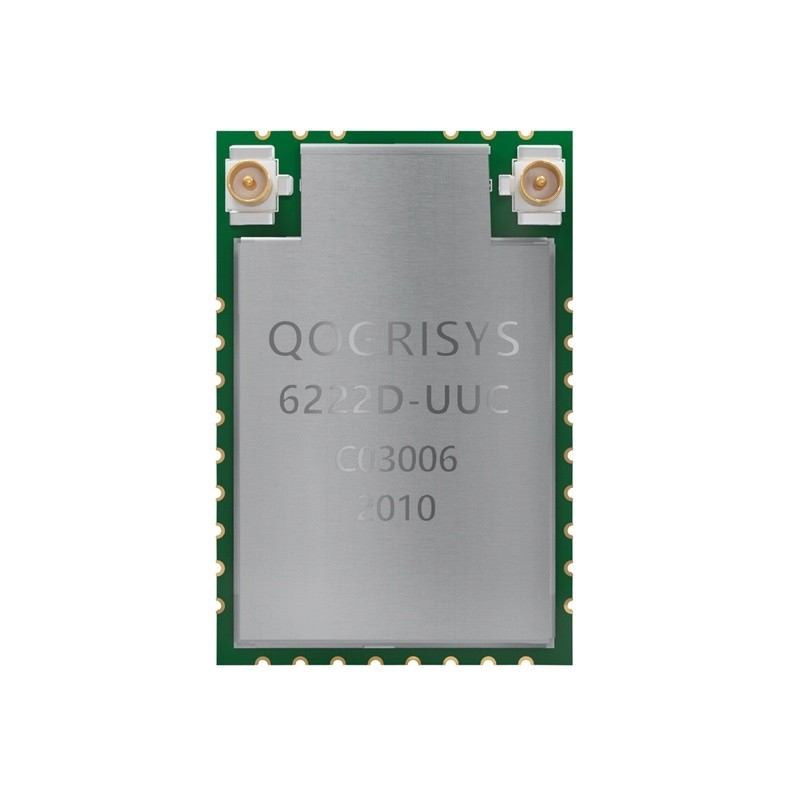

6222D-UUC is a low-cost and low-power consumption module which has all of the Wi-Fi and Bluetooth functionalities. The highly integrated module makes the possibilities of web browsing, VoIP, Bluetooth headsets applications. With seamless roaming capabilities and advanced security, also could interact with different vendors’ 802.11a/b/g/n/ac 2x2 Access Points in the wireless LAN.
The wireless module complies with IEEE 802.11 a/b/g/n/ac 2x2 MIMO standard and it can achieve up to a speed of 867Mbps with dual stream in 802.11n to connect the wireless LAN. The integrated module provides USB2.0 interface for Wi-Fi and Bluetooth. This compact module is a total solution for a combination of Wi-Fi + BT technologies. The module is specifically developed for Smart TV and OTT Box application.
Block Diagram
| Min. | Typ. | Max. | Unit | ||
| Operating Temperature | 0 | 25 | 70 | deg.C | |
| VCC33 | 3.15 | 3.3 | 3.45 | V | |
| VDDIO | - | 3.3 | - | V | |
|
Power Consumption |
VCC33 = 3.3V(Unit:mA) | ||||
| Wi-Fi on Mode | 130 | ||||
|
TX (2.4G HT20) |
459 | ||||
|
RX (2.4G HT20) |
210 | ||||
|
TX (5G HT80) |
510 | ||||
|
RX (5G HT80) |
210 | ||||
| BT on | 32 | ||||
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
& Commercial And OA Application
Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
