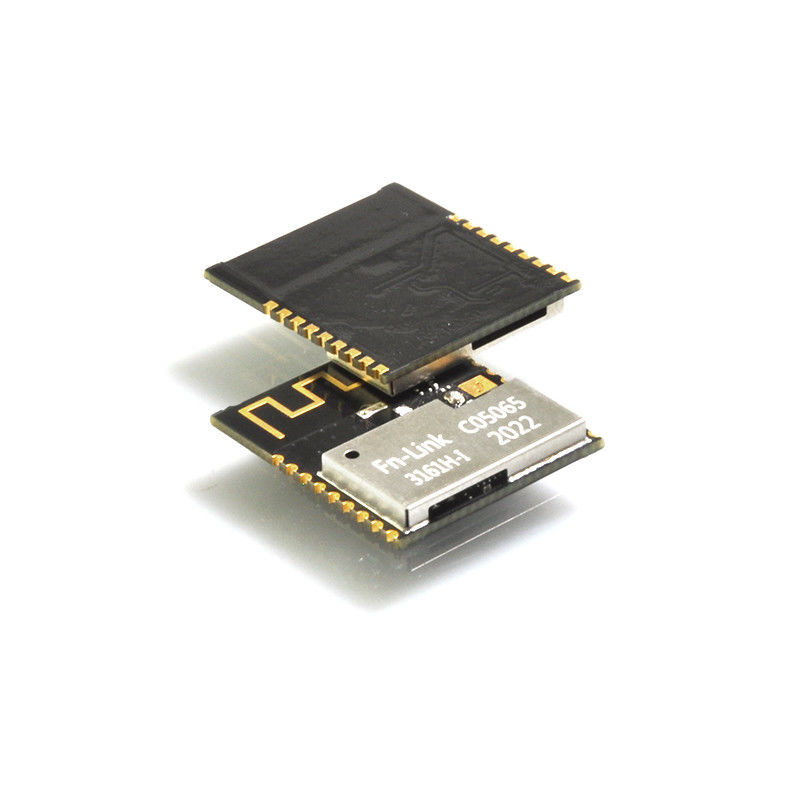

72.2Mbps Hi3861 IC IOT WiFi Module RF 2.4GHz Transceiver Module With 32 bit MCU

72.2Mbps Hi3861 IC IOT WiFi Module RF 2.4GHz Transceiver Module With 32 bit MCU

  • High Light

    72.2Mbps 2.4GHz Transceiver Module

    ,

    RF 2.4GHz Transceiver Module

    ,

    Hi3861 IC Wireless Transceiver Module

  • Low Power
    Yes
  • MCU
    32 Bit
  • Antenna
    Internal Type
  • PHY Rate
    72.2Mbps
  • MAC Support Configuration
    IEEE802.11 D/e/h/i/k/v/w
  • Security
    WFA WPA/WPA2, WPS2.0
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    ROHS/REACH
  • Model Number
    3161H-I
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 2.2-3.3/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

72.2Mbps Hi3861 IC IOT WiFi Module RF 2.4GHz Transceiver Module With 32 bit MCU

72.2Mbps Hi3861 IC IOT WiFi Module RF 2.4GHz Transceiver Module With 32 bit MCU

Product Details

This wireless Transceiver module is an easy and suitable module if you want to setup your wireless communication system with low cost.

It can achieve a good balance between wireless transition performance and cost.

What's more, this hi3861 module is designed with32-bit MCU, WLAN (802.11 b/g/n) MAC, a 1T1R capable WLAN baseband, RF .This allowed Hi3861suitable for the field of low-power intelligent products



Features General Diagram

72.2Mbps Hi3861 IC IOT WiFi Module RF 2.4GHz Transceiver Module With 32 bit MCU 0



Features Of WIFI,Wlan,MCU
72.2Mbps Hi3861 IC IOT WiFi Module RF 2.4GHz Transceiver Module With 32 bit MCU 1


Multiple Wifi Port


SDIO 2.0 1x,SPI 1x ,I2C 1x,UART 3x,I2S 1x,PWM 6x,ADC 7x,GPIO 13x



Operating Conditions

Operating Voltage:3.3±10% Vdc
Operating Temperature:-40°C to +85°C
Storage Temperature:-40°C to +125°C
