Product Details
Place of Origin: China
Brand Name: OFLYCOMM
Certification: CE/FCC/IC/KCC/SRRC/TELEC/NCC/ROHS/REACH
Model Number: 6188S-UF
Payment & Shipping Terms
Minimum Order Quantity: 5/pcs
Price: USD 1.4-2.4/pcs
Packaging Details: Reel
Delivery Time: 15-40 workdays
Payment Terms: T/T
Supply Ability: 4000000pcs/month
Chipset: |
RTL8188FTV |
WIFI Standard: |
IEEE802.11b/g/n |
Frequency: |
2.4GHz |
Interface: |
USB |
OS Support: |
Android /Linux/Windows |
Security: |
WEP,TKIP,AES,WPA,WPA2 |
Size: |
14.8x18.2x1.9mm |
Application: |
Robot |
Chipset: |
RTL8188FTV |
WIFI Standard: |
IEEE802.11b/g/n |
Frequency: |
2.4GHz |
Interface: |
USB |
OS Support: |
Android /Linux/Windows |
Security: |
WEP,TKIP,AES,WPA,WPA2 |
Size: |
14.8x18.2x1.9mm |
Application: |
Robot |

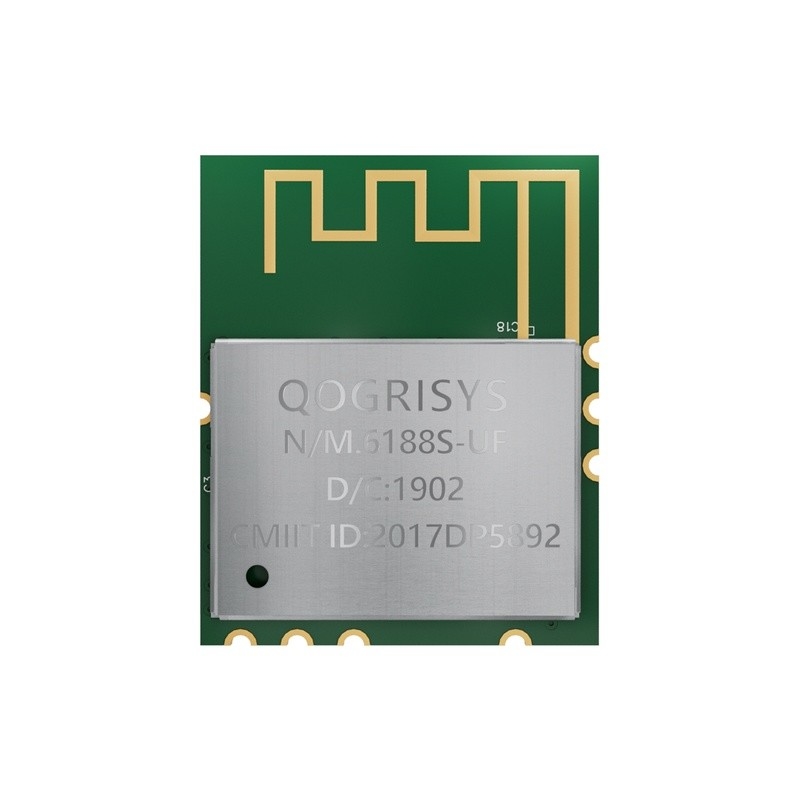

6188S-UF is a small size and low profile of WiFi module, board size is 14.8mm*18.2mm with module thickness of 1.9mm. It can be easily manufactured on SMT process and highly suitable for tablet PC, ultra book, mobile device and consumer products. It provides USB interface for WiFi. The module provides simple legacy and 20MHz/40MHz co-existence mechanisms to ensure backward and network compatibility.
6188S-UF uses highly integrated Wi-Fi single chip based on advanced COMS process.
6188S-UF integrates whole Wi-Fi function blocks into a chip, such as USB, MAC, BB, AFE, RFE, PA, EEPROM and LDO/SWR, except fewer passive components remained on PCB.
This compact module is a total solution for Wi-Fi technology. The module is specifically developed for Smart phones and Portable devices.
| Model No | 6188S-UF | Main Chipset | RTL8188FTV |
| Interface | USB | WiFi Standard | IEEE802.11b/g/n |
| Data Rate | 150Mbps | Certification | ROHS REACH |
| RF Antenna | PCB Antenna | OS Supported | Linux/Android/Windows |
| Frequency | 2.4GHz | Power Supply | 3.3V |
| Size | 14.8x18.2x1.9mm | RF Chain | 1T1R |
| Operating Temperature | 0° Cto 70°C | Storage Temperature | -40° Cto 125°C |
Operate at ISM frequency bands (2.4GHz)
USB Interface for WiFi
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Enterprise level security which can apply WPA/WPA2 certification for WiFi
WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
& Commercial And OA Application
Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
& Industrial And Vehical Application
Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile
& Medical Application
Medical equipments/Medical instruments
& Other Consumer Electronic Products
Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
