RTL8723DU USB WiFi BT Module 2.4G Realtek Wifi Module For Android Tablet PC
-
High Light
802.11 ac wifi module
,wifi camera module
-
ChipsetRTL8732DU
-
WIFI StandardIEEE802.11b/g/n
-
Frequency2.4GHz
-
InterfaceUSB
-
OS SupportWindows/Android /Linux
-
SecurityWEP,TKIP,AES,WPA,WPA2
-
Size12.2x13.0x1.9mm
-
ApplicationTablet PC
-
Place of OriginChina
-
Brand NameFN-LINK
-
CertificationCE/FCC/SRRC/ROHS/REACH
-
Model Number6223E-UUD-W2
-
Minimum Order Quantity5/pcs
-
PriceUSD 2.2-4/pcs
-
Packaging DetailsReel
-
Delivery Time15-40 workdays
-
Payment TermsT/T
-
Supply Ability4000000pcs/month
RTL8723DU USB WiFi BT Module 2.4G Realtek Wifi Module For Android Tablet PC
2.4G Realtek RTL8723DU USB WiFi BT Module For Android Tablet PC
USB WiFi Module Introduction

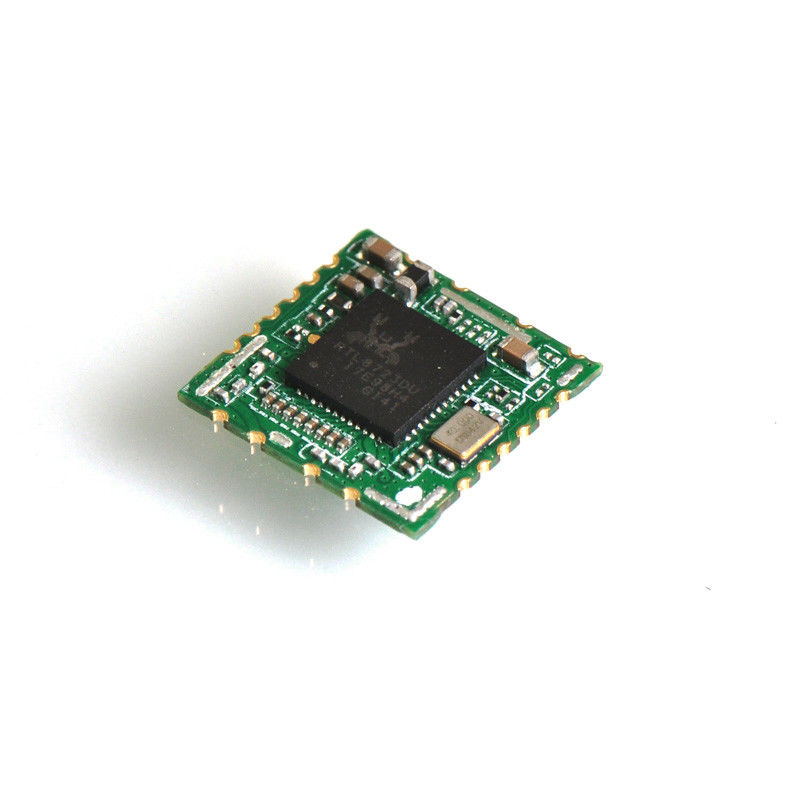

6223E-UUD-W2 is a small size and low profile of WiFi +BT Combo module,board size is 12.2mm*13mm with module thickness of 1.7mm.It can be easily manufactured on SMT process and highly suitable for tablet PC,ultra book, mobile device and consumer products.It provides USB interface for WiFi and Bluetooth. The WiFi throughput can go up to 150Mbps in theory by using 1x1 802.11n MIMO technology and Bluetooth can suppor BT2.1+EDR/BT3.0 and BT4.2.
6223E-UUD-W2 uses highly integrated WiFi/BT single chip based on advanced COMS process.
6223E-UUD-W2 integrates whole WiFi/BT function blocks into a chip,such as USB, MAC, BB,AFE,RFE, PA, EEP ROM and LDO/SWR, except fewer passive components remained on PCB.
This compact module is a total solution for a combination of WiFi + BT technologies. The module is specifically developed for Smartphones and Portable devices.
USB WiFi Module Detailed Parameters
| Model No | 6223E-UUD-W2 | Main Chipset | RTL8723DU |
| Interface | USB | WiFi Standard | IEEE802.11b/g/n |
| Data Rate | 150Mbps | Certification | ROHS REACH |
| RF Antenna | External Antenna | OS Supported | Windows/Linux/Android |
| Frequency | 2.4GHz | Power Supply | 3.3V |
| Size | 12.2x13.0x1.9mm | RF Chain | 1T1R |
| Operating Temperature | 0° C to 70°C | Storage Temperature | -40° C to 125°C |
USB WiFi Module Features
Operate at ISM frequency bands(2.4GHz)
USB for WiFi and Bluetooth
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE802.11e, IEEE802.11h,IEEE802.11i
Fully Qualified for Bluetooth 2.1+EDR specification including both 2Mbps and 3Mbps modulation mode
Fully qualified for Bluetooth 3.0
Fully qualified for Bluetooth 4.2 Dual mode
Full–speed Bluetooth operation with Piconet and Scatternet support
Enterprise level security which can apply WPA/WPA2 certification for WiFi
WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150Mbps upstream PHY rates
USB WiFi Module Application Range
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
& Commercial And OA Application
Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
& Industrial And Vehical Application
Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile
& Medical Application
Medical equipments/Medical instruments
& Other Consumer Electronic Products
Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
