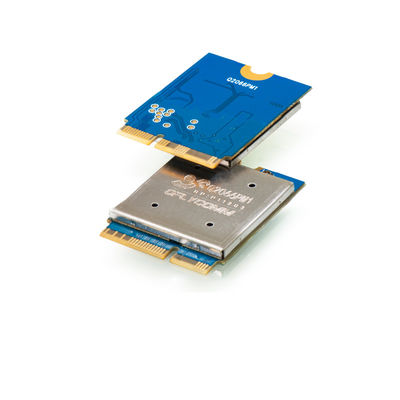

Qualcomm Embedded Wifi Module BT5.2 QCA206X Low Profile 2975.6Mbps

Qualcomm Embedded Wifi Module BT5.2 QCA206X Low Profile 2975.6Mbps

  • High Light

    Qualcomm Embedded Wifi Module

    ,

    Low Profile Embedded Wifi Module

    ,

    2975.6Mbps WiFi Bluetooth Module

  • Chipset
    QCA2066
  • Speed
    2975.6Mbps
  • Size
    22 X 30 X 2.7 (typical) Mm
  • Wifi Interface
    M.2 2230 Key E
  • Operating Temperature
    -30°C To 85°C
  • Storage Temperature
    -40°C To 125°C
  • Place of Origin
    China
  • Brand Name
    Oflycomm
  • Certification
    ROHS/REACH
  • Model Number
    O2066PM
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 29/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

Qualcomm Embedded Wifi Module BT5.2 QCA206X Low Profile 2975.6Mbps

Qualcomm Embedded Wifi Module Bluetooth5.2 QCA206X Serial WiFi BT Module



Siginificant Advantages Of Wifi 6E

1. Faster speed, support for more concurrent devices, lower latency, and lower power consumption

Qualcomm Embedded Wifi Module BT5.2 QCA206X Low Profile 2975.6Mbps 0

2.Under the WiFi 6 standard, a fleet departing at the same time can form a team of at least 26 adjacent vehicles. Each team can be sent to different customers. If a vehicle fails (disturbed), it willonly affect the team.

Qualcomm Embedded Wifi Module BT5.2 QCA206X Low Profile 2975.6Mbps 1



3. The interference coloring technology adopted by WiFi 6 can mark the neighbor network signal frames coming through the wall so that the user's router can ignore them. WiFi signals between neighbors can transmit data on the same channel at the same time without interfering with each other, reducing the interference rate by 30%.

Qualcomm Embedded Wifi Module BT5.2 QCA206X Low Profile 2975.6Mbps 2

4. WiFi 6 negotiates the timing of WiFi wake-up with the terminal, and wakes up on demand, without power consumption during sleep periods.

Qualcomm Embedded Wifi Module BT5.2 QCA206X Low Profile 2975.6Mbps 3






Product Overview



This is a WLAN 802.11ax (WiFi 6E) M.2 2230 (KEY E) Module, 802.11ax WiFi 6E allows Increased capacity, faster speed, better coverage connections, improve the battery life of IOT sensors, and extend the range of Wi-Fi signals. By implementing the new 802.11ax standard with its unique features such as OFDMA, 1024QAM, Target Wake Time (TWT), and spatial reuse, the Q206X(BT) module enables smooth streaming of high-resolution videos, fewer dropped connections and faster connections farther away from the router and in dense environments.



Overall Specification

Model Name

O2066PM

Product Description

Support WiFi 6E+BT5.2

Dimension

L x W x H: 22 x 30 x 2.7 (typical) mm

WiFi Interface

M.2 2230 Key E

Operating temperature

-30°C to 85°C

Storage temperature

-40°C to 125°C

Humidity

Operating Humidity 10% to 95% Non-Condensing



Recommended Operating Rating

  Min. Typ. Max. Unit
Operating Temperature -30 25 70 deg.C
VCC 3.3V 3.20 3.3 3.45 V

Other

Please feel free to contact samuel(samuel@ofeixin.com) for further information about Q2066PM1
