RTL8821AU Wifi BT Module Reach 433.3Mbps USB For Microcontroller

RTL8821AU Wifi BT Module Reach 433.3Mbps USB For Microcontroller

  • High Light

    RTL8821AU Wifi BT Module

    ,

    Microcontroller USB Wifi BT Module

    ,

    433.3Mbps Wireless Bluetooth Module

  • Solution
    Realtek WiFi Module
  • 802.11b
    11Mbps
  • 802.11a
    54Mbps
  • 802.11g
    54Mbps
  • 802.11n
    150Mbps
  • 802.11ac
    433.3Mbps
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    ROHS/REACH
  • Model Number
    F21AUUM13-W2
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 6.2-7.7/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

RTL8821AU Wifi BT Module Reach 433.3Mbps USB For Microcontroller

RTL8821AU Wifi BT Module USB To Wifi Module For Microcontroller



F21AUUM13-W2 is a highly integrated module 802.11a/b/g/n/ac 1T1R USB2.0 WLAN controller. It combines a WLAN MAC, a 1T1R capable WLAN baseband, BT Protocol Stack(LM,LL, and LE), BT baseband, modem, and WLAN/BT RF in the module. The module provides a complete solution for a high throughput performance integrated wireless LAN and Bluetooth device.





Specification

Model No: F21AUUM13-W2

Main Chipset: RTL8821AU

Host Interface: USB 2.0

Data Rate: 433Mbps

Modulation: DBPSK,DQPSK,CCK,BPSK, QPSK,OFDM

Transmit Output Power: 14dBm

Work Mode: Software AP,WiFi Direct

Security: WPA, WPA-PSK, WPA2, WPA2-PSK, WEP

Antenna:External Antenna

Dimension: L19.0mm*W17.1mm*T2.0mm

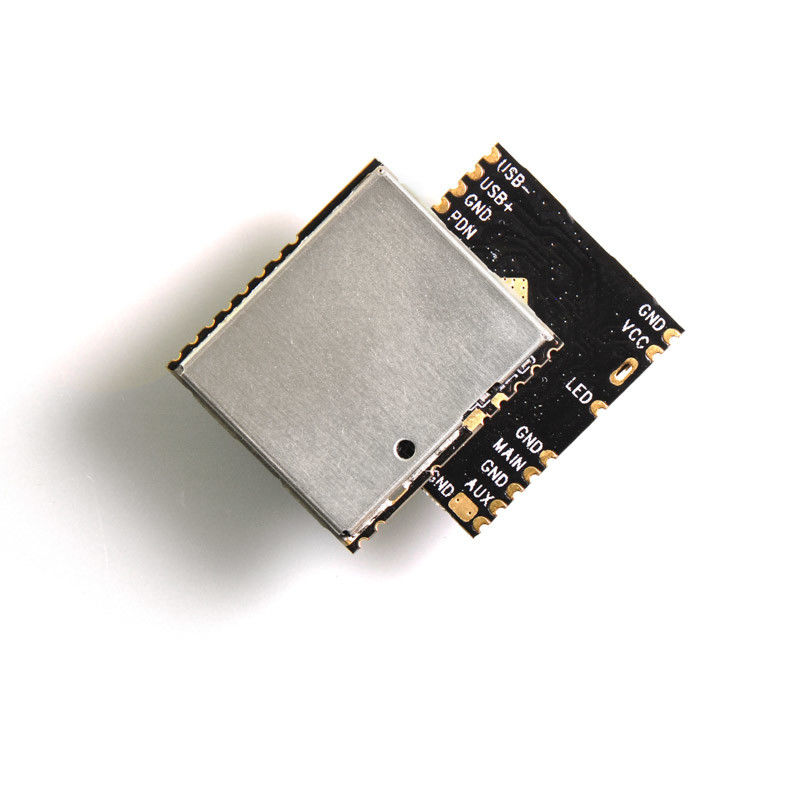

RTL8821AU Wifi BT Module Reach 433.3Mbps USB For Microcontroller 0


Pin Assignment

RTL8821AU Wifi BT Module Reach 433.3Mbps USB For Microcontroller 1



Note:Please feel free to contact me if you need more details of pin defination
