Product Details
Place of Origin: China
Brand Name: FN-LINK
Certification: ROHS/REACH
Model Number: 5268D-UU
Payment & Shipping Terms
Minimum Order Quantity: 5/pcs
Price: USD 5.5-8.3/pcs
Packaging Details: Reel
Delivery Time: 15-40 workdays
Payment Terms: T/T
Supply Ability: 4000000pcs/month
Chipset: |
MT7668BU |
WIFI Standard: |
802.11 A/b/g/n/ac |
Frequency: |
2.4GHz 5.8GHZ |
Interface: |
USB |
OS Support: |
Android /Linux |
Security: |
WEP,TKIP,AES,WPA,WPA2 |
Size: |
27.0x18.0x2.3mm |
Application: |
Smart TV And OTT Box |
Chipset: |
MT7668BU |
WIFI Standard: |
802.11 A/b/g/n/ac |
Frequency: |
2.4GHz 5.8GHZ |
Interface: |
USB |
OS Support: |
Android /Linux |
Security: |
WEP,TKIP,AES,WPA,WPA2 |
Size: |
27.0x18.0x2.3mm |
Application: |
Smart TV And OTT Box |

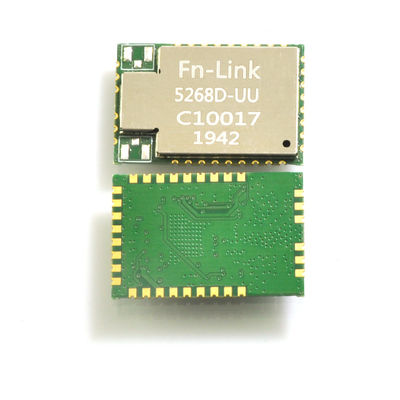

MT7668BU WiFi Bluetooth 5.0 USB 802.11 a/b/g/n/ac 2x2 MIMO Wireless WIFI Module for Smart TV and OTT Box application
Introduction
Fn-Link Technology would like to announce a low-cost and low-power consumption module which has all of the Wi-Fi and Bluetooth functionalities. The highly integrated module makes the possibilities of web browsing, VoIP, Bluetooth headsets applications. With seamless roaming capabilities and advanced security, also could interact with different vendors’ 802.11a/b/g/n/ac 2x2 Access Points in the wireless LAN.
The wireless module complies with IEEE 802.11 a/b/g/n/ac 2x2 MIMO standard and it can achieve up to a speed of 600Mbps with dual stream to connect the wireless LAN. The integrated module provides USB interface for Wi-Fi and Bluetooth.
This compact module is a total solution for a combination of Wi-Fi + BT technologies. The module is specifically developed for Smart TV and OTT Box application.
Features
Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ 802.11ac, or 2.4G/5G 802.11n WLAN applications.
Dual-stream spatial multiplexing up to 600 Mbps data rate.
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
Supports USB interface for WLAN and Bluetooth.
Supports Bluetooth V5.0+HS, BLE and be backwards compatible with Bluetooth 1.2,
2.X+ enhance data rate.
Upto7BTlink+32BLElink.
General Specification
|
Model Name |
5268D-UU |
|
Product Description |
Support Wi-Fi/Bluetooth |
|
Dimension |
L x W x H: 27 x 18 x 2.0 (typical) mm |
|
Wi-Fi Interface |
Support USB2.0 |
|
BT Interface |
USB2.0 |
|
Operating temperature |
-10°C to 70°C |
|
Storage temperature |
-40°C to 85°C |
Our Services
Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.Skype:+8618280383459
