Home > products > WiFi BT Module > Realtek RTL8723DS 802.11n WiFi BT Combo Module 6223B-SRD

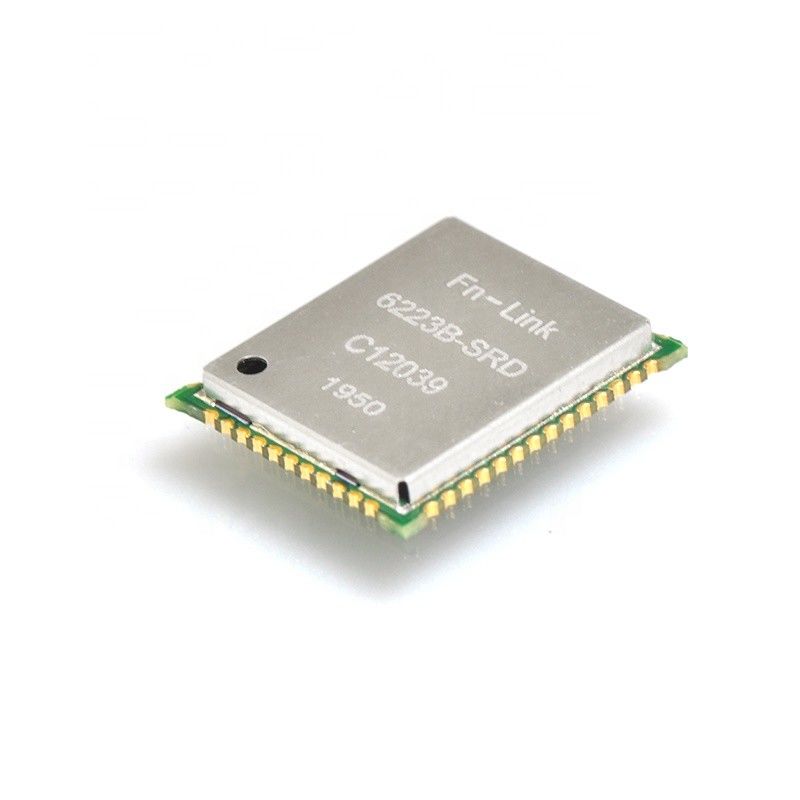

Realtek RTL8723DS 802.11n WiFi BT Combo Module 6223B-SRD

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: ROHS/REACH

Model Number: 6223B-SRD

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 2.1-3/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

802.11n WiFi BT Combo Module

,

6223B-SRD WiFi BT Combo Module

,

Realtek RTL8723DS Wifi Bluetooth Module

Description:
Support Wi-Fi/Bluetooth Functionalities
Wireless Standard:
802.11n&Bluetooth 4.2
Backward Compatibility:
802.11b/g&Bluetooth4.1/4.0/3.0/2.1
Dimension:
15.0x13.0x1.5mm
Driver Compatibility:
Linux/Android/Windows
Antenna Options:
External Antenna
Description:
Support Wi-Fi/Bluetooth Functionalities
Wireless Standard:
802.11n&Bluetooth 4.2
Backward Compatibility:
802.11b/g&Bluetooth4.1/4.0/3.0/2.1
Dimension:
15.0x13.0x1.5mm
Driver Compatibility:
Linux/Android/Windows
Antenna Options:
External Antenna
Realtek RTL8723DS 802.11n WiFi BT Combo Module 6223B-SRD

Realtek RTL8723DS 802.11n WiFi BT Combo Module 6223B-SRD



  • Fully integrated, single-band Wi-Fi BLE5 combination IoT module
  • Low-cost, high-speed serial-to-wireless connection
  • Comprehensive software features
  • Low power consumption
  • Advanced security features



Introduction

6223B-SRD incorporates an intelligent coexistances mechanism for WiFi 802.11 b/g/n via SDIO and Dual Mode Bluetooth® v4.2 via UART. This is ideal for significantly minimising the BoM cost and PCB space.



6223B-SRD uses highly integrated Wi-Fi/BT single chip based on advanced COMS process. 6223B-SRD integrates whole Wi-Fi/BT function blocks into a chip, such as SDIO/UART, MAC, BB, AFE, RFE, PA, EEPROM and LDO/SWR, except fewer passive components remained on PCB.



It’s SMT side and bottom pads allow for easy manufacture and placement within your product.



Pin Outline

Realtek RTL8723DS 802.11n WiFi BT Combo Module 6223B-SRD 0



SDIO Pin Description

SD 4-Bit Mode
DATA0
Data Line 0
DATA1
Data Line 1 or Interrupt
DATA2
Data Line 2 or Read Wait
DATA3
Data Line 3
CLK
Clock
CMD
Command Line
