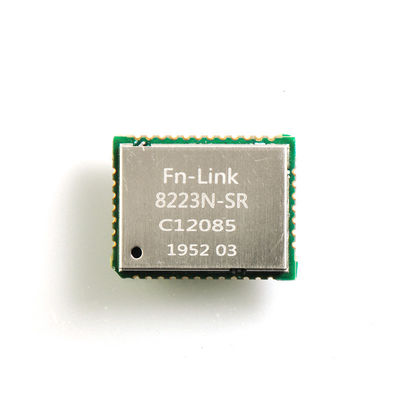

5GHz SDIO WiFi Module Qualcomm Atheros QCA9377 Support 802.11ac BT4.1

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: ROHS/REACH

Model Number: 8223N-SR

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 4-6.8/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

BT4.1 SDIO Remote Control Module

,

Qualcomm Atheros SDIO WiFi Module

,

5GHz SDIO WiFi Module

Product Name:
SDIO WiFi Module
WiFi Specs:
802.11a/b/g/n/ac
MIMO Antenna:
1x1
Data Rate:
433Mbps
Mounting Type:
SMT
Packing:
LGA
Product Name:
SDIO WiFi Module
WiFi Specs:
802.11a/b/g/n/ac
MIMO Antenna:
1x1
Data Rate:
433Mbps
Mounting Type:
SMT
Packing:
LGA
5GHz SDIO WiFi Module Qualcomm Atheros QCA9377 Support 802.11ac BT4.1

Low Power 5GHz SDIO WiFi Module Qualcomm Atheros QCA9377 Support 802.11ac+BT4.1



It is an 802.11ac/abgn 2.4GHz+5GHz USB module (WiFi 5) based on Qualcomm QCA9377 chipset. It supports 1T1R with RX diversity (Support Wi-Fi/BT co-existence) technology, which runs up to 433Mbps and 1~3Mbps EDR for BT, provides higher throughput performance, reliability and range. Also it supports 20/40/80MHz and 256-QAM to maximize bandwidth efficiency.

Adopting the latest WiFi 5 solution, it is ideal for high throughput networking and multimedia applications that requires better Wi-Fi performance. It is a single-die wireless local area network (WLAN) to support 1x1 802.11ac/abgn WLAN standards , designed to deliver superior integration of WLAN and low-energy technology.

Specs

Model No 8223N-SR
Wireless Standard 802.11ac/a/b/g/n, Bluetooth V4.1, V4.0 LE, V3.0+HS, V2.1+EDR
Main Chipset Qualcomm Atheros QCA9377
Host Interface SDIO/Uart/PCM
Antenna External Antenna
Operating Frequency
2.400 GHz ~ 2.497 GHz (2.4 GHz ISM Band)
4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band)
Output Power
802.11b@11Mbps: 16dBm± 1.5 dB@ EVM  -9dB
802.11g@54Mbps: 15dBm± 1.5 dB@ EVM  -25dB
802.11n(HT20) MCS7: 14 dBm± 1.5 dB@ EVM  -28dB
802.11a@54Mbps: 12dBm± 1.5 dB@ EVM  -25dB
802.11n /mcs7(HT20): 10dBm± 1.5 dB@ EVM  -28dB
802.11n /mcs7(HT40): 10dBm± 1.5 dB@ EVM -28dB
802.11ac/mcs9: 8 dBm ± 1.5 dB @ EVM  -32dB
Operating Voltage DC3.3V
Operating Temperature -30 to +85
Storage Temperature -40 to +125
Dimension L16.6 * W13.0 * T1.8mm

Features

  • IEEE Standards Support, 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ac.
  • Supports channel widths 20/40MHz at 2.4GHz and 20/40/80MHz at 5GHz.
  • Supports USB interface for WLAN and BT.
  • Supports BT version: 4.1+HS, BLE, ANT+
  • Supports Class1 and Class 2 BT power level transmissions.
  • Single-stream IEEE 802.11n support for 20 and 40MHz channels provide the PHY layer rates up to 150Mbps.
  • Single-stream IEEE 802.11ac support for 80MHz channels provide the PHY layer rates up to 433Mbps.
  • Supports Wi-Fi Direct and MU-MIMO.
  • Fully compliance with the SDIO v3.0 specification.
  • Supporting OS:Linux/Android/Windows
  • Support for Intelligraphics Advanced Fast Roaming, CCX and various Enterprise Security methods.

Used For



Medical Devices, Security Systems, 3D Printer, Vedio Streami, PoS, Digital Signs, Gaming Machine,Industrial tablet PC, Handheld Devices and other more consumer electronics.
Inquiry



If you are not sure this one is right for you,please contact us before you order this.
