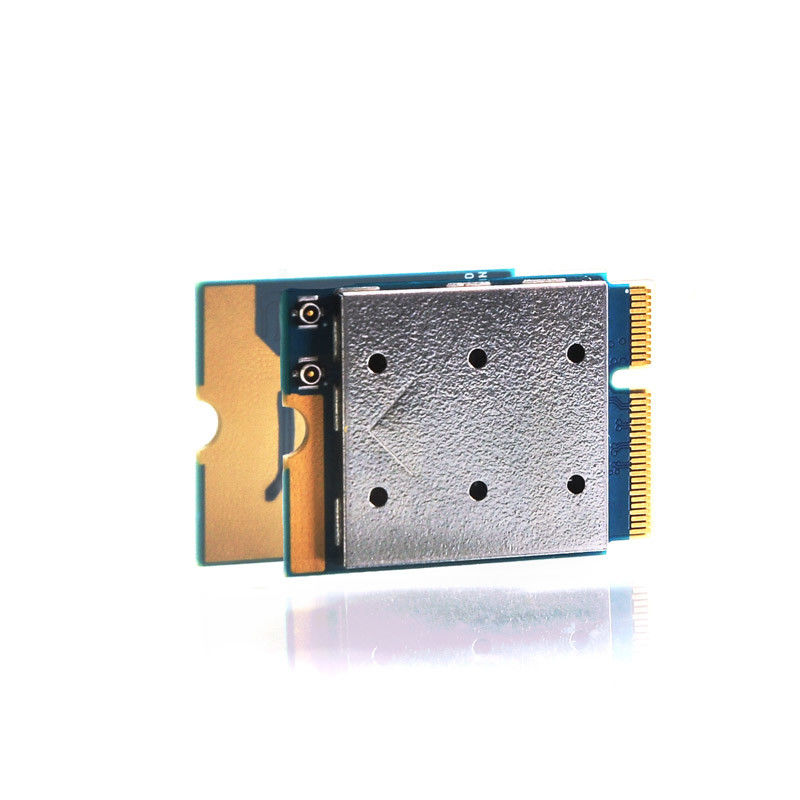

1800Mbps 5GHz WiFi Module 6 Chip QCA6391 M2 PCIe Interface With ROHS Approval
-
High Light
data transmission module
,wifi transceiver module
,ROHS Approval 5GHz WiFi Module
-
Product Name5GHz WiFi Module
-
Wireless SpecifictionIEEE802.11a/b/g/n/ac/ax+BT 5.1
-
FeatureWiFi 6 Chip
-
Data Rate1800Mbps
-
RF Chain2T2R
-
DeliveryDHL Express
-
Leadtime25-40 Days
-
SamplePls Contact Us
-
Place of OriginChina
-
Brand NameFN-LINK
-
CertificationROHS/REACH
-
Model Number8291M-PR
-
Minimum Order Quantity5/pcs
-
PriceUSD 21.5-28/pcs
-
Packaging DetailsReel
-
Delivery Time15-40 workdays
-
Payment TermsT/T
-
Supply Ability4000000pcs/month
1800Mbps 5GHz WiFi Module 6 Chip QCA6391 M2 PCIe Interface With ROHS Approval
5GHz WiFi Module WiFi 6 Chip QCA6391 M.2 PCIe Interface 802.11ax WiFi+BT5.1
Introduction
It is our new product, which is a high pefermance dual band 5GHz WiFi Module
It is based on Qualcomm WiFi 6 chip QCA6391 chipset, which complies with IEEE 802.11 a/b/g/n/ac/ax and Bluetooth 5.1
It can achieve up to a speed of 1800Mbps (2x2 80MHz 11ax + 2x2 40MHz 11ax DBS)
It provides PCIe interface for WiFi, UART/PCM interface for Bluetooth
Specifications
Product Type: WiFi 6 Module
Product Status: New Product
Operating Frequency: 2.4G&5.8GHz
Main Chipset: QCA6391(802.11ax+BT5.1)
RF Antenna: 2T2R External Antenna
Interface: PCIe/Uart/PCM
OS : Linux/Android/Windows
Size: L x W x H:22 x 30 x 2.2 (typical) mm
Operating Voltage: 3.3V
Operating Temperature: -30° Cto 70°C
Storage Temperature: -40° Cto 125°C
Certification: ROHS/REACH
Function
Highly integrated wireless local area network (WLAN) system on chip (SOC) for 2.4G/5G 802.11ax WLAN applications.
Dual stream spatial multiplexing up to 1800 Mbps data rate.
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz.
Supports low power PCIe interface for WLAN and UART/PCM interface for Bluetooth.
Supports Bluetooth V5.1, BLE, ANT+ and be backwards compatible with Bluetooth 1.2, 2.X+ enhance data rate.
Supports WLAN Bluetooth coexistence and ISM LTE coexistence.
Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA.
BT host digital interface:
HCI UART (up to 3.2 Mbps)
PCM for audio data
Application
Smart TV/IPTV/OTT/AR/VR and some other high data rate video transmission requirements products.
Support
Welcome to visit our website and browsed what you would be intereted. The driver is available which is based on your project information( CPU/OS/Kernel version), that we can know if that reach your requirement and support proper follow up service.
Our products are sold all over the world, you can rest assured.
