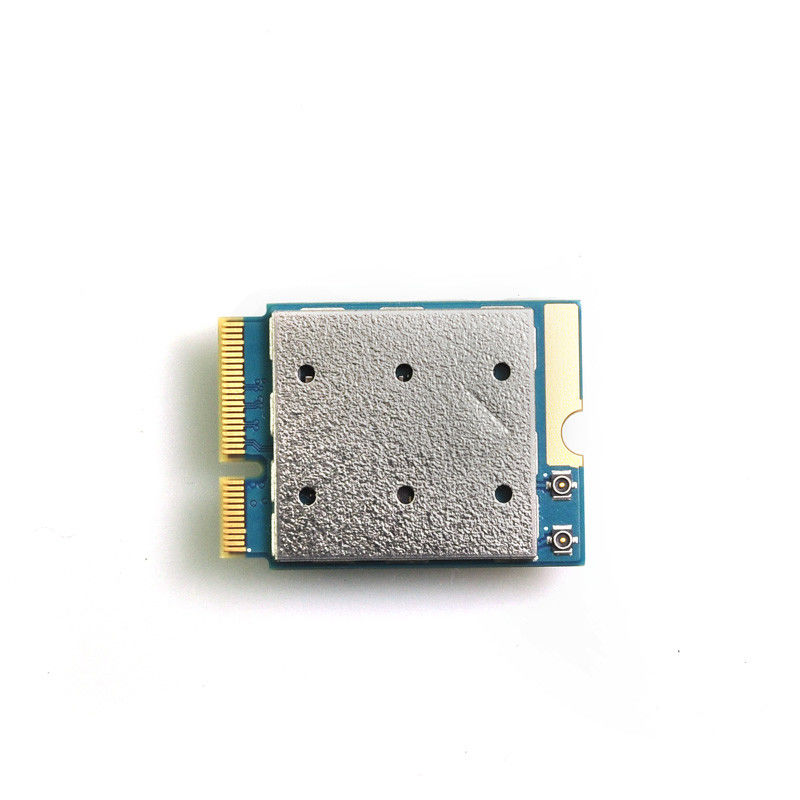

WiFi Bluetooth 5.1 Qualcomm WiFi Module M.2 E Key QCA6391 802.11ax 3.3V Power Supply

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: ROHS/REACH

Model Number: 8291M-PR

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD21.5-28/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

wifi bluetooth module

,

wifi bt combo module

,

3.3V wifi bluetooth combo module

Main Chipset:
QCA6391
Operating Frequency:
2.4G:2.400GHz~2.497GHz(2.4G ISM Band) 5.8G:4.900GHz~5.845GHz(5.0G ISM Band)
Host Interface:
PCIe/Uart/PCM
Operating Voltage:
3.3Vdc ±10%
Operating Temperature:
-30°C To 85°C
Demension:
L22.0 * W30.0 * T2.3 Mm
Main Chipset:
QCA6391
Operating Frequency:
2.4G:2.400GHz~2.497GHz(2.4G ISM Band) 5.8G:4.900GHz~5.845GHz(5.0G ISM Band)
Host Interface:
PCIe/Uart/PCM
Operating Voltage:
3.3Vdc ±10%
Operating Temperature:
-30°C To 85°C
Demension:
L22.0 * W30.0 * T2.3 Mm
WiFi Bluetooth 5.1 Qualcomm WiFi Module M.2 E Key QCA6391 802.11ax 3.3V Power Supply

M.2 E Key QCA6391 802.11ax WiFi+Bluetooth 5.1 Qualcomm WiFi Module



Qualcomm WiFi Module Features

Highly integrated wireless local area network (WLAN) system on chip (SOC) for 2.4G/5G 802.11ax WLAN applications.

Dual stream spatial multiplexing up to 1800 Mbps data rate.

Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz.

Supports low power PCIe interface for WLAN and UART/PCM interface for Bluetooth.

Supports Bluetooth V5.1, BLE, ANT+ and be backwards compatible with Bluetooth 1.2, 2.X+ enhance data rate.

Supports WLAN Bluetooth coexistence and ISM LTE coexistence.

Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA.

BT host digital interface:

HCI UART (up to 3.2 Mbps)

PCM for audio data

Qualcomm WiFi Module Detailed Parameters

Model No 8291M-PR
WiFi Standard IEEE 802.11a/b/g/n/ac/ax
Data Rate 1800Mbps
RF Antenna External Antenna
RF Chain 2T2R
OS Supported Linux/Android

Qualcomm WiFi Module Introduction

8291M-PR is a WiFi Bluetooth combo module. It complies with IEEE 802.11 a/b/g/n/ac/ax 2x2 MIMO standard and it can achieve up to a speed of 1800Mbps (2x2 80MHz 11ax + 2x2 40MHz 11ax DBS). Also it provides PCIe interface for WiFi, UART/PCM interface for Bluetooth. This compact module is a total solution for a combination of WiFi and Bluetooth V5.1 technology. It is specifically developed for all portable devices.

Qualcomm WiFi Module Application Range

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

Medical equipments/Medical instruments

Note
Please contact us before buying modules.Otherwise,the module may not meet your needs or modules are not in stock. Datasheets are available any time.
