Product Details
Place of Origin: China
Brand Name: FN-LINK
Certification: ROHS/REACH
Model Number: FN-8112MEU-V2.5-VH
Payment & Shipping Terms
Minimum Order Quantity: 5/pcs
Price: USD2.0-3.5/pcs
Packaging Details: Reel
Delivery Time: 15-40 workdays
Payment Terms: T/T
Supply Ability: 4000000pcs/month
Chipset: |
RTL8188EUS-VH |
WIFI Standard: |
IEEE802.11b/g/n |
Interface: |
USB |
Size: |
13.0x12.2x1.7mm |
Antenna: |
External Antenna |
Type: |
USB WiFi Module |
Chipset: |
RTL8188EUS-VH |
WIFI Standard: |
IEEE802.11b/g/n |
Interface: |
USB |
Size: |
13.0x12.2x1.7mm |
Antenna: |
External Antenna |
Type: |
USB WiFi Module |

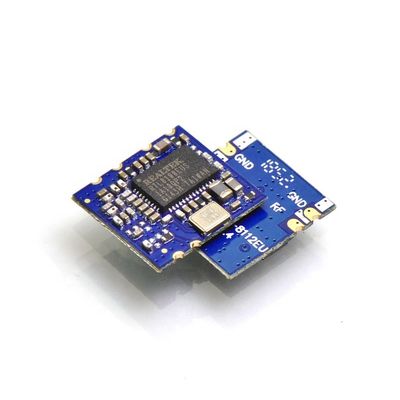

FN-8112MEU-V2.5-VH usb wifi module is a very high performance and low power consumption module that includes 2.4GHz WLAN functionality for consumer grade applications. Based on Realtek RTL8188EUS, the module provides IEEE 802.11b/g/n(1x1).
| Model No | FN-8112MEU-V2.5-VH | Main Chipset | RTL8188EUS-VH |
| Interface | USB | WiFi Standard | IEEE802.11b/g/n |
| Data Rate | 150Mbps | Certification | ROHS REACH |
| RF Antenna | External Antenna | OS Supported | Linux/Android/Windows |
| Frequency | 2.4GHz | Power Supply | 3.3V |
| Size | 13.0x12.2x1.7mm | RF Chain | 1T1R |
| Operating Temperature | 0° Cto 70°C | Storage Temperature | -40° Cto 80°C |
Operate at ISM frequency bands (2.4GHz)
USB Interface for WiFi
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Enterprise level security which can apply WPA/WPA2 certification for WiFi
WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates
OTT/IPTV/DVB/STB,Tablet PC,Laptop,Smart TV,IPC/NCR,Industrial Controllers ,DVR,Doorbell,Projector,AR/VR,Printer/POS Terminal,Electronic Scale,Drone,Robot,HDMI Transmitter,Smart Gateway,Education,Toys and other Consumer Electronics
Please engage with our sales team to determine if this module is suitable for your applications.Regarding sample request,please inform us the detail of your project, thanks for your supports.
