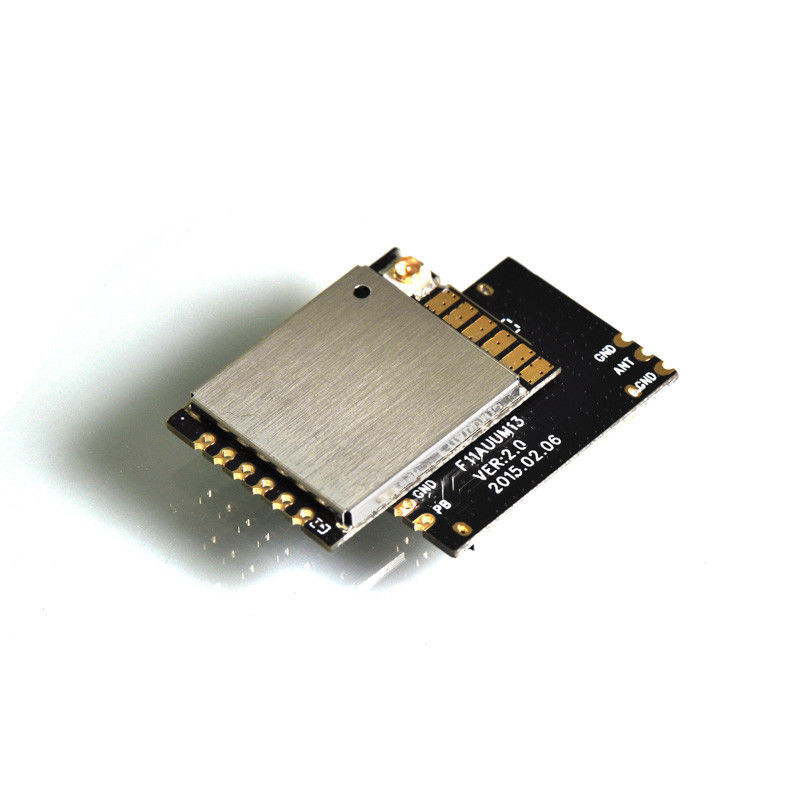

USB Dual Band Wifi Module With Power Amplifier And IPEX Connector

High Light

wifi transmitter and receiver module
,
wireless bluetooth module
Chipset

RTL8811AU
WIFI Standard

IEEE802.11a/b/g/n/ac
Interface

USB
Size

23.0x17.0x3.0mm
Antenna

External Antenna
Type

Dual Band Wifi Module
Place of Origin

China
Brand Name

FN-LINK
Certification

CE/FCC/ROHS/REACH
Model Number

F11AUUM13-W4
Minimum Order Quantity

5/pcs
Price

USD 5-6.8/pcs
Packaging Details

Reel
Delivery Time

15-40 workdays
Payment Terms

T/T
Supply Ability

4000000pcs/month

USB Dual Band Wifi Module With Power Amplifier And IPEX Connector

Name: USB Dual Band Wifi Module With Power Amplifier And IPEX Connector
Brand: FN-LINK
SKU: F11AUUM13-W4
Price: 5 USD
Availability: InStock
Rating: 4.6 (119 reviews)

button button

Get Price Contact Now

Dual Band Wifi Module With Power Amplifier And IPEX Connector

Dual Band WiFi Module Introduction

Type F11AUUM13-W4 dual band wifi module is a very high performance module that includes 2.4GHz/5GHz WLAN for consumer grade applications. Based on RTL8811AU, the module provides IEEE 802.11a/b/g/n/ac (1x1).

Dual Band WiFi Module Detailed Parameters

Model No	F11AUUM13-W4	Main Chipset	RTL8811AU
Interface	USB	WiFi Standard	IEEE802.11a/b/g/n/ac
Data Rate	433Mbps	Certification	ROHS REACH
RF Antenna	External Antenna	OS Supported	Windows/Linux/Android
Frequency	2.4GHz/5.8GHz	Power Supply	3.3V
Size	23.0x17.0x3.0mm	RF Chain	1T1R
Operating Temperature	0° C to 70°C	Storage Temperature	-40° C to 125°C

Dual Band WiFi Module Features

Compatible with IEEE 802.11a/b/g/n/ac

Operation at 2.4~2.5GHz and 5.15~5.825GHz frequency band to meet worldwide regulations

Provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanisms to ensure backward and network compatibility.

Supports infrastructure networks via Access Point and ad-hoc network via peer-to-peer communication

Supports IEEE 802.11i(WPA and WPA2),WAPI,. enhanced security

Dual Band WiFi Module Application Range

OTT/IPTV/DVB/STB,Tablet PC,Laptop,Smart TV,IPC/NCR,Industrial Controllers ,DVR,Doorbell,Projector,AR/VR,Printer/POS Terminal,Electronic Scale,Drone,Robot,HDMI Transmitter,Smart Gateway,Education,Toys and other Consumer Electronics

Note

Please engage with our sales team to determine if this module is suitable for your applications. Regarding sample request,please inform us the details of your project, thanks for your support.
