Smart Plug IOT SOC Realtek WiFi Module 2.4G RTL8711AM Low Cost

Smart Plug IOT SOC Realtek WiFi Module 2.4G RTL8711AM Low Cost

  • High Light

    IOT SOC Realtek WiFi Module


    Smart Plug Realtek WiFi Module


    RTL8711AM Wifi Module

  • Chipset
  • Frequency
  • Size
  • Data Rate
  • Power Supply
  • Type
    Realtek WiFi Module
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
    USD 4.1-5.7/pcs
  • Packaging Details
  • Delivery Time
    15-40 workdays
  • Payment Terms
  • Supply Ability

Smart Plug IOT SOC Realtek WiFi Module 2.4G RTL8711AM Low Cost

RTL8711AM IOT SOC 2.4G Realtek WiFi Module For Smart Plug


Realtek WiFi Module Introduction

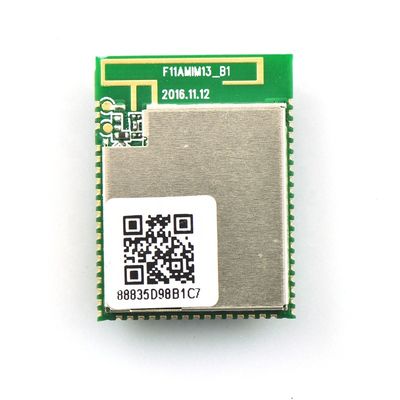

F11AMIM13-B4 is a highly integrated module with low power 802.11n Wireless LAN(WLAN) network controller. It combines an ARM-CM3 MCU, WLAN MAC, a 1T1R capable WLAN baseband, and RF function. It also provides a bunch of configurable GPIOs which are configured as digital peripherals for different applications and control usage.

F11AMIM13-B1 integrates internal memories for complete WIFI protocol functions.

Realtek WiFi Module Detailed Parameters

Model No F11AMIM13-B4 Main Chipset RTL8711AM
Interface UART/I2C/SPI/PWM/ADC/GPIO WiFi Standard IEEE802.11b/g/n
Data Rate 150Mbps Certification ROHS REACH
RF Antenna PCB Antenna OS Supported With MCU
Frequency 2.4GHz Power Supply 3.3V
Size 24.0x18.0x2.2mm RF Chain 1T1R
Operating Temperature -20° Cto 85°C Storage Temperature -40° Cto 125°C

Realtek WiFi Module Features

CMOS MAC, Baseband PHY, and RF in the module for 802.11b/g/n compatible WLAN

Complete 802.11n solution for 2.4G band

150Mbps receive PHY rate and 150Mbps transmit PHY rate using 40MHz bandwidth

802.11b/g/n compatible WLAN

802.11e QoS Enhancement(WMM)

802.11i(WPA,WP2). Open, shared key, and pair-wise key authentication services

WiFi Direct support

Light Weight TCP/IP protocol

802.11n OFDM

One Transmit and one Receive path(1T1R)

20MHz and 40MHz bandwidth transmission

Short Guard Interval(400ns)

Maximum data rate 54Mbps in 802.11g and 150Mbps in 802.11n

2 x UART

1x I2C

1x SPI

3x PWM

1x ADC

Maximum GPIO

Realtek WiFi Module Application Range

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products



Welcome to visit our website to learn more about Realtek wifi module.
