High Light
wifi transmitter module
,2.4 ghz wireless module
-
ChipsetSX1276
-
Frequency868MHz/915MHz
-
Size22.0 * 14.0 * 1.7 Mm
-
Data Rate1000kbps
-
Power Supply3.3.V
-
TypeLora WiFi Module
-
Place of OriginChina
-
Brand NameFN-LINK
-
CertificationROHS/REACH
-
Model Number9176FS-XX
-
Minimum Order Quantity5/pcs
-
PriceUSD 7.5-9.2/pcs
-
Packaging DetailsReel
-
Delivery Time15-40 workdays
-
Payment TermsT/T
-
Supply Ability4000000pcs/month

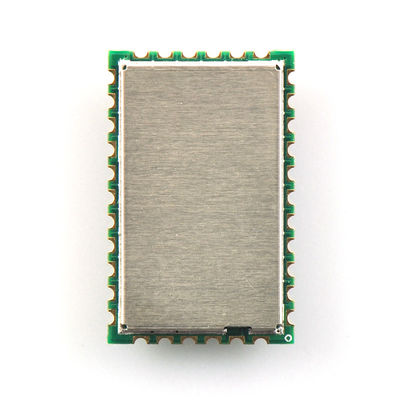

SX1276 Lora WiFi Module 5KM Lora Gateway Module 868MHz / 915MHz
868MHz/915MHz SX1276 Lora WiFi Module 5KM Lora Gateway Module
LoRa Wifi Module Introduction
9176FS-XX lora module is low-cost and ultra low-power,it has LORA modem with MCU functionalities.
The module also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the tradition deign compromise between range, interference immunity and energy consumption. Also support high performance (G)FSK models for systems including WMBus, IEEE802.15.4g.
Lora Wifi Module Detailed Parameters
| Model No | 9176FS-XX | Main Chipset | SX1276 |
| Interface | UART/UART2/GPIOs | WiFi Standard | Lora |
| Data Rate | 1000kbps | Certification | ROHS REACH |
| RF Antenna | External Antenna | OS Supported | |
| Frequency | 868MHz/915MHz | Power Supply | 3.3V |
| Size | 22.0x14.0x1.7mm | RF Chain | 1T1R |
| Operating Temperature | -40° Cto 85°C | Storage Temperature | -40° Cto 85° |
LoRa Wifi Module Features
168 dB maximum link budget
+14dBm/20dBm high efficiency PA
Programmable bit rate up to 300Kbps
High sensitivity: down to -148dBm
FSK, GFSK, MSK, GMSK, LORA and OOK modulation
127dB Dynamic Range RSSI
Automatic RF Sense and CAD with ultra-fast AFC, packet engine up to 256 bytes with CRC
LoRa Wifi Module Application Range
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
& Commercial And OA Application
Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
Note
Dear customer,please contact sales if you would like to know more details about this lora wifi module.
