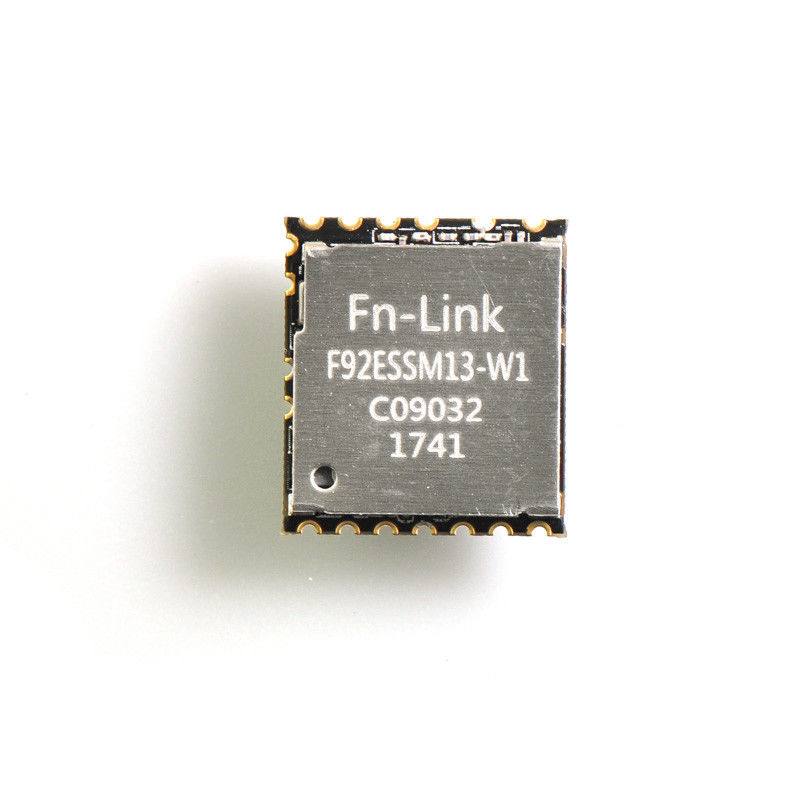

2.4Ghz 2T2R 3.3V SDIO WiFi Module Wlan Module With Shield Cover

2.4Ghz 2T2R 3.3V SDIO WiFi Module Wlan Module With Shield Cover

  • High Light

    high speed wifi module

    ,

    wifi low energy module

    ,

    F92ESSM13-W1 sdio wifi module

  • Chipset
    RTL8192ES
  • Frequency
    2.4GHz
  • Size
    14.0 * 12.5 * 2.3mm
  • Data Rate
    300Mbps
  • Power Supply
    3.3.V
  • Type
    SDIO Wifi Module
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    ROHS/REACH
  • Model Number
    F92ESSM13-W1
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 1.9-3.4/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

2.4Ghz 2T2R 3.3V SDIO WiFi Module Wlan Module With Shield Cover

2.4Ghz 2T2R 3.3V SDIO Wifi Module Wlan Module With Shield Cover



SDIO Wifi Module Introduction

F92ESSM13-W1 sdio wifi module is based on Realtek RTL8192es chip which supports 802.11b/b/n.It is a sdio wifi modulle with dual external antenna. It meets the 802.11n standard.

F92ESSM13-W1 is a low power and high speed sdio wifi module

SDIO Wifi Module Detailed Parameters

Model No F92ESSM13-W1 Main Chipset RTL8192ES
Interface SDIO 2.0 WiFi Standard IEEE802.11b/g/n
Data Rate 300Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Android/Linux
Frequency 2.4GHz Power Supply 3.3V
Size 14.0x12.5x2.3mm RF Chain 2T2R
Operating Temperature 0° Cto 55°C Storage Temperature -40° Cto 80°C

SDIO Wifi Module Features

Operate at ISM frequency bands (2.4GHz)

WiFi Interface is SDIO

IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,

Enterprise level security which can apply WPA/WPA2 certification for WiFi.

WiFi 1 transmitter and 1 receiver allow data rates supporting up to 300 Mbps downstream and 300 Mbps upstream PHY rates

SDIO Wifi Module Application Range

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

Note
Dear customer,please contact sales if you would like to know more details about this sdio wifi module.
