Products - USB WiFi Module
  • High Light

    802.11 ac wifi module

    ,

    wifi camera module

  • Chipset
    RTL8188EUS
  • Frequency
    2.4Ghz
  • Size
    25.0 * 12.0 * 2.0mm
  • Data Rate
    150Mbps
  • Power Supply
    3.3V
  • Type
    USB WiFi Module
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    ROHS/REACH
  • Model Number
    FN-8126B3EU
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 1.9-3.0/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

Consumer Electronic Products Of USB WiFi Module Wlan Module

  • Consumer Electronic Products Of USB WiFi Module Wlan Module
Get Price Contact Now

Consumer Electronic Products Of USB WiFi Module Wlan Module



USB WiFi Module Introduction

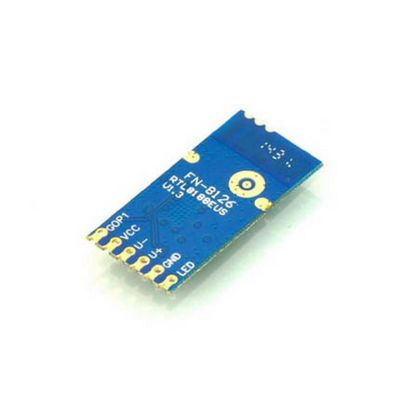

FN-8126B3EU is a highly integrated and excellent performance Wireless LAN (WLAN) USB2.0 network interface device. High-speed wireless connection up to 150 Mbps.
FN-8126B3EU usb wifi  module is based on Realtek RTL8188eus chip which supports 802.11b/b/n.It is a usb wifi  modulle with single external antenna.

USB Wifi Module Detailed Parameters

Model No FN-8126B3EU Main Chipset RTL8188EUS
Interface USB WiFi Standard IEEE802.11b/g/n
Data Rate 150Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Linux/Android
Frequency 2.4GHz Power Supply 3.3V
Size 25.0*12.0*2.0mm RF Chain 1T1R
Operating Temperature 0° C to 55°C Storage Temperature -40° C to 80°C

USB Wifi Module Features

Operate at ISM frequency bands (2.4GHz)

USB Interface for WiFi

IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,

Enterprise level security which can apply WPA/WPA2 certification for WiFi.

WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates

USB Wifi Module Application Range

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

Note
Dear customer,please contact sales if you would like to know more about this usb wifi module.
