Realtek USB Wifi Module With External Antenna IPEX Wireless Network Equipment

Realtek USB Wifi Module With External Antenna IPEX Wireless Network Equipment

  • High Light

    usb wifi bluetooth module

    ,

    802.11 ac wifi module

  • Chipset
    RTL8192DU
  • WiFi Standard
    IEEE802.11a/b/g/n
  • Frequency
    5.8Ghz
  • Interface
    USB
  • OS Support
    Android/Linux
  • Security
    WEP,TKIP,AES,WPA,WPA2
  • Size
    27.0*20.0*2.7mm
  • Application
    IP Phone
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    ROHS/REACH
  • Model Number
    F92DSUM13-W1
  • Minimum Order Quantity
    5/pcs
  • Price
    USD5.8-6.5/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

Realtek USB Wifi Module With External Antenna IPEX Wireless Network Equipment

Realtek USB Wifi Module With External Antenna IPEX Wireless Network Equipment



USB Wifi Module Introduction

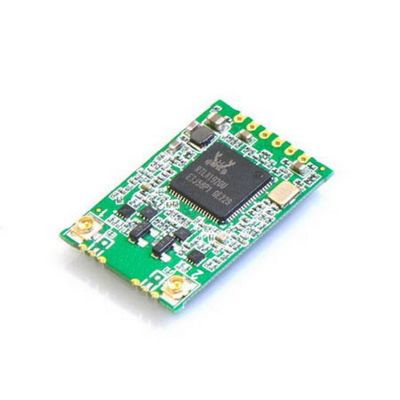

The general hardware for the module is shown in Figure 1. This WLAN Module design is based on Realtek RTL8192DU. It is a highly integrated single-chip MIMO Wireless LAN (WLAN) USB2.0 network interface controller complying with the 802.11a/b/g/n specification. It combines a MAC, a 2T2R capable baseband, support 2.4G & 5G band, and RF in a single chip. It is designed to provide excellent performance with low power Consumption and enhance the advantages of robust system and cost-effective.

USB Wifi Module Detailed Parameters

Model No F92DSUM13-W1 Main Chipset RTL8192DU
Interface USB WiFi Standard IEEE802.11a/b/g/n
Data Rate 300Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Linux/Android
Frequency 5.8GHz Power Supply 3.3V
Size 27.0x20.0x2.7mm RF Chain 2T2R
Operating Temperature 0° C to 55°C Storage Temperature -40° C to 80°C

USB Wifi Module Features

Complying with the 802.11a/b/g/n specification

It combines a MAC, a 2T2R capable baseband,

Support 2.4G & 5G band,USB Interface

USB Wifi Module Application Range

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products

Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
