Product Details
Place of Origin: China
Brand Name: QOGRISYS
Certification: ROHS/REACH
Model Number: 6110R-IF-02
Payment & Shipping Terms
Minimum Order Quantity: 5/pcs
Price: USD2.1-3.8/pcs
Packaging Details: Reel
Delivery Time: 15-40 workdays
Payment Terms: T/T
Supply Ability: 4000000pcs/month
Model Name: |
6110R-IF-02 |
Main Chipset: |
Realtek RTL8710AF/ RTL8711AF |
Host Port: |
UART,GPIO,SDIO |
Wi-Fi Standards: |
802.11b/g/n |
Other RF Standards: |
RFC |
RoHS: |
All Hardware Components Are Fully Compliant With EU RoHS Directive |
Model Name: |
6110R-IF-02 |
Main Chipset: |
Realtek RTL8710AF/ RTL8711AF |
Host Port: |
UART,GPIO,SDIO |
Wi-Fi Standards: |
802.11b/g/n |
Other RF Standards: |
RFC |
RoHS: |
All Hardware Components Are Fully Compliant With EU RoHS Directive |

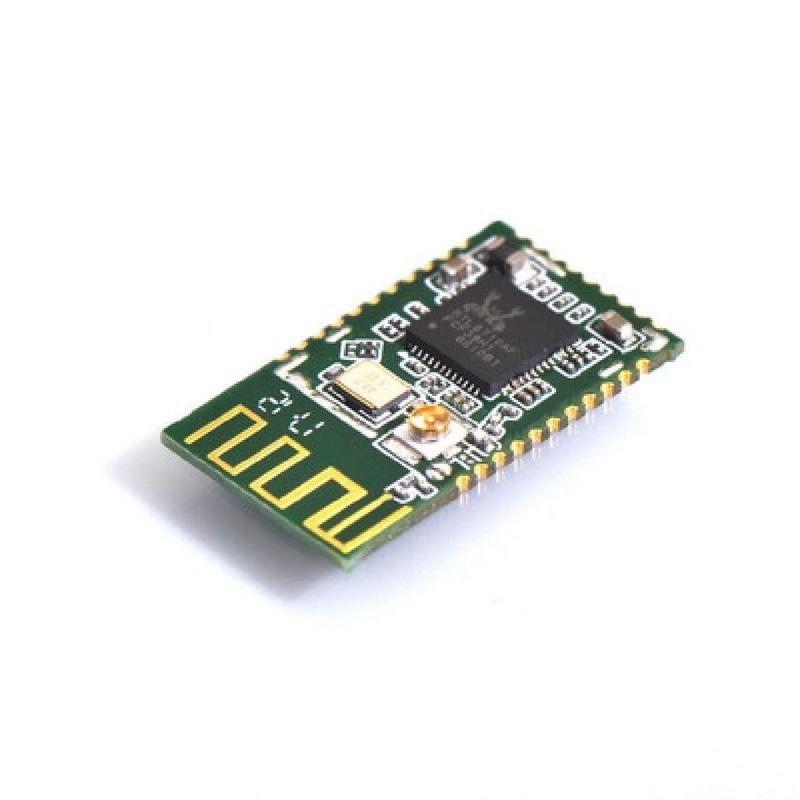

This Realtek Wi-fi module based on the chip RTL8710. Works in standard wi-fi 802.11 b/g/n at 2.4 GHz. Equipped with 23 output,, the module can be programmed using the program RTL8710 RealTek SDK with the help of micro USB. The plate size is 22.5x 13.0X2.1 mm.
CMOS MAC, Baseband PHY, and RF in the module for 802.11b/g/n compatible WLAN
WLAN PHY Features
802.11n OFDM
Operating Temperature is from -20°C to 85°C
Storage Temperature is from -40°C to 125°C
Operating Voltage is 3.3±10% Vdc
