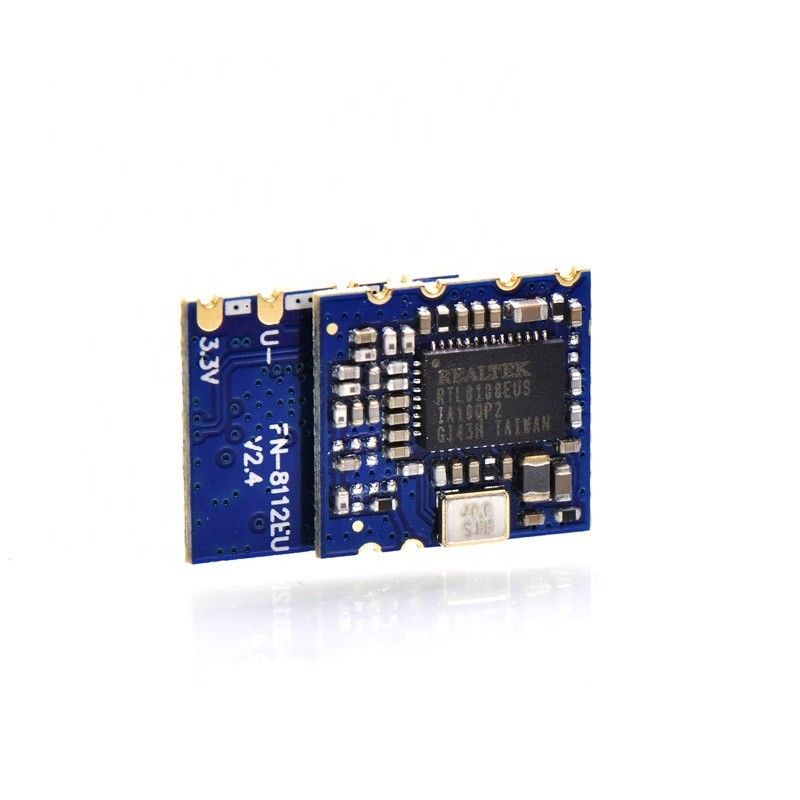

FN-8112MEU-V2.5-VH is a highly integrated and excellent performance Wireless LAN (WLAN) USB network interface device. High-speed wireless connection up to 150 Mbps.
This WLAN Module design is based on Realtek RTL8188EUS. It is a highly integrated single-chip 1*1 MIMO (Multiple In Multiple Out) Wireless LAN (WLAN) USB network interface controller complying with the 802.11n specification. It combines a MAC, a 1T1R capable baseband, and RF in a single chip. It is designed to provide excellent performance with low power Consumption and enhance the advantages of robust system and cost-effective.
Model No |
FN-8112MEU-V2.5-VH |
Main Chipset |
RTL8188EUS |
Interface |
USB |
WiFi Standard |
IEEE802.11b/g/n |
Data Rate |
150Mbps |
Certification |
ROHS REACH |
RF Antenna |
External Antenna |
OS Supported |
Linux/Android |
Frequency |
2.4GHz |
Power Supply |
3.3V |
Size |
13.0x12.2x2.0mm |
RF Chain |
1T1R |
Operating Temperature |
0° Cto 65°C |
Storage Temperature |
-40° Cto 85°C |
Operate at ISM frequency bands (2.4GHz)
USB Interface for WiFi
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Enterprise level security which can apply WPA/WPA2 certification for WiFi
WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
& Commercial And OA Application
Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
& Industrial And Vehical Application
Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile
& Medical Application
Medical equipments/Medical instruments
& Other Consumer Electronic Products
Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.Skype:15982299436
