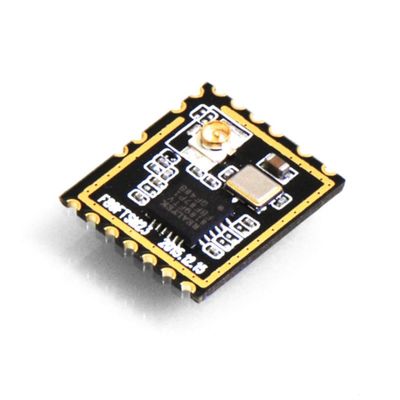

F89FTSM33-W1 is a highly integrated and excellent performance Wireless LAN (WLAN) SDIO network interface device. High-speed wireless connection up to 150 Mbps .This WLAN Module design is based on Realtek RTL8189FTV. It is a highly integrated single-chip 1*1 MIMO (Multiple In Multiple Out) Wireless LAN (WLAN) SDIO network interface controller complying with the 802.11n specification. It combines a MAC, a 1T1R capable baseband, and RF in a single chip. It is designed to provide excellent performance with low power Consumption and enhance the advantages of robust system and cost-effective.
SDIO Wifi Module Detailed Parameters
Model No | F89FTSM33-W1 | Main Chipset | RTL8189FTV |
Interface | SDIO 2.0 | WiFi Standard | IEEE802.11b/g/n |
Data Rate | 150Mbps | Certification | ROHS REACH |
RF Antenna | External Antenna | OS Supported | Android/Linux |
Frequency | 2.4GHz | Power Supply | 3.3V |
Size | 14.0x12.5x2.0mm | RF Chain | 1T1R |
Operating Temperature | 0° Cto 55°C | Storage Temperature | -40° Cto 80°C |
Operate at ISM frequency bands (2.4GHz)
SDIO Interface for WiFi
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,
Enterprise level security which can apply WPA/WPA2 certification for WiFi.
WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
& Commercial And OA Application
Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
& Industrial And Vehical Application
Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile
& Medical Application
Medical equipments/Medical instruments
& Other Consumer Electronic Products
Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
