Home > products > PCIe WiFi Module > WiFi 6 QCA6391 MU-MIMO M.2 DBS 2G 5G PCIe WiFi Module

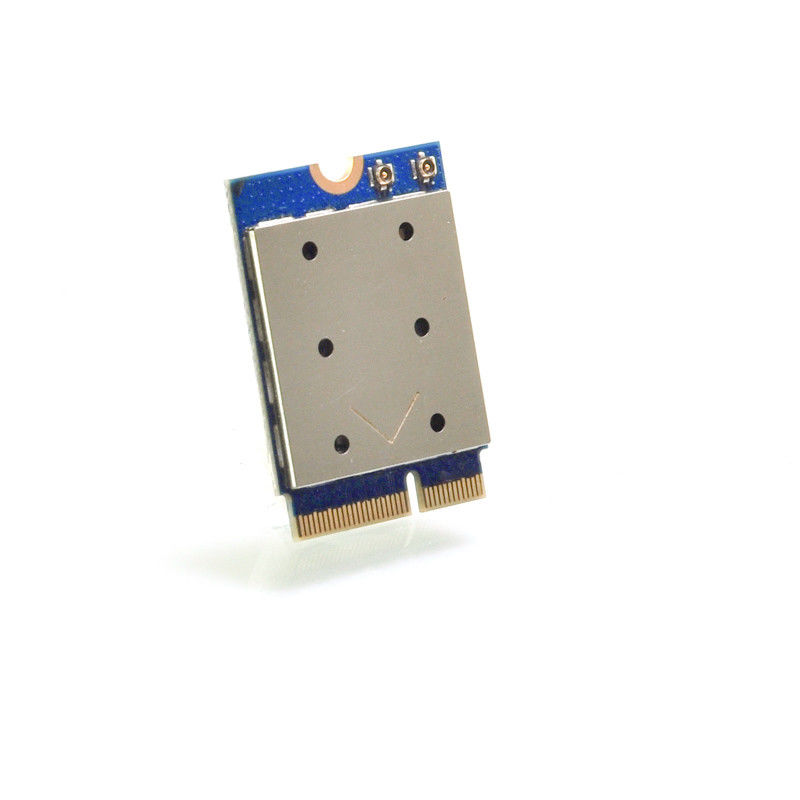

WiFi 6 QCA6391 MU-MIMO M.2 DBS 2G 5G PCIe WiFi Module

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: ROHS/REACH

Model Number: 8291M-PR

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD21.5-28/pcs

Packaging Details: Reel

Delivery Time: 30-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

data transmission module

,

wifi transceiver module

Product Description:
Support WiFi+Bluetooth
Wlan Standard:
IEEE 802.11a/b/g/n/ac/ax Wi-Fi
Host Interface:
PCIe/Uart/PCM
Bluetooth Standard:
Bluetooth V5.1
Function:
DBS 2G&5G
Connector Type:
M.2 2230 E Key
Product Description:
Support WiFi+Bluetooth
Wlan Standard:
IEEE 802.11a/b/g/n/ac/ax Wi-Fi
Host Interface:
PCIe/Uart/PCM
Bluetooth Standard:
Bluetooth V5.1
Function:
DBS 2G&5G
Connector Type:
M.2 2230 E Key
WiFi 6 QCA6391 MU-MIMO M.2 DBS 2G 5G PCIe WiFi Module

M.2 PCIe WiFi Module WiFi 6 QCA6391 MU-MIMO 802.11ax+Bluetooth 5.1



Description

8291M-PR is our latest WiFi Module which is based on Qualcomm WiFi 6 Chip QCA6391. It complies with IEEE 802.11 a/b/g/n/ac/ax 2x2 MIMO standard and the maximum data rate can reach 1800Mbps (2x2 80MHz 11ax + 2x2 40MHz 11ax DBS).



Main Parameters

Chipset QCA6391
Interface

WiFi: PCIe

Bluetooth: Uart/PCM

Operating Frequency Band

2.4G:2.400GHz~2.497GHz(2.4G ISM Band)

5.8G:4.900GHz~5.845GHz(5.0G ISM Band)

Dimension
L x W x H: 22 x 30 x 2.3 (typical) mm
OS Supported  Linux/Android/Windows



Remarks
Welcome to visit our website to learn more WiFi 5&6 Modules. As one of leading manufacturers in China, we can promise that our products will be competitive in quality,service and price.





Block Diagram

WiFi 6 QCA6391 MU-MIMO M.2 DBS 2G 5G PCIe WiFi Module 0
