Combo WiFi BT Module High Speed 150Mbps Wifi And Bluetooth Module

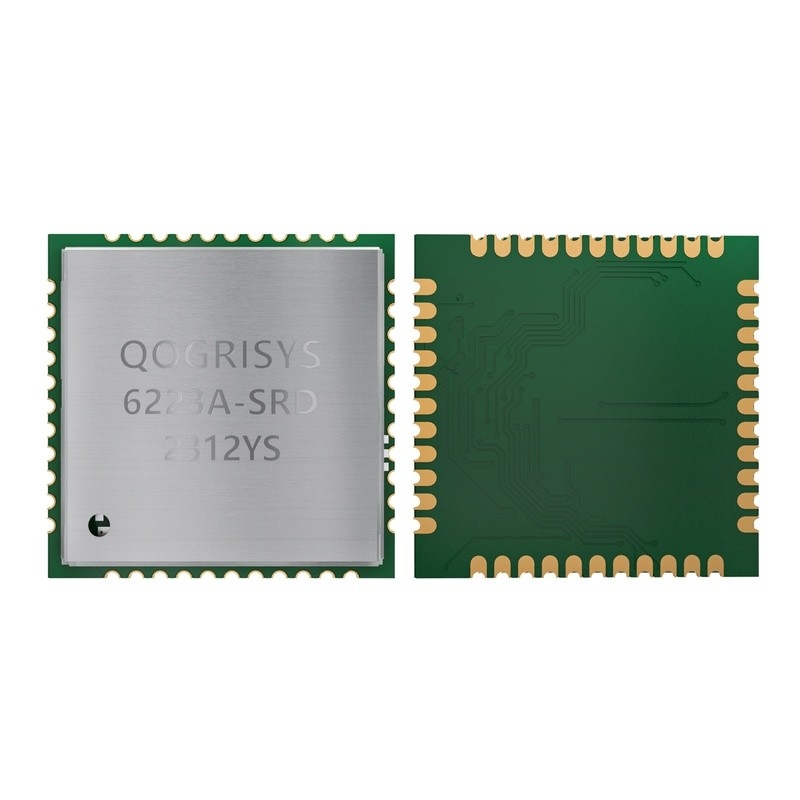

6223A-SRD is a small size and low profile of Wi-Fi + BT Combo module with LGA (Land-Grid Array) footprint, board size is 12mm*12mm.IEEE standards support IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d,
IEEE 802.11e, IEEE 802.11h, IEEE 802.11i.
Overall Information About 6223A-SRD
6223A-SRD supports Wi-Fi/Bluetooth functionalities,which demension is 2 x 12 x2.1 (typical) mm,regarding its interface,wifi supports sdio,bt provides uart and pcm.0°C to 70°C is operating temperature,all hardware components are fully compliant with EU RoHS directive.
Fully Qualified for Bluetooth 2.1+EDR specification including both 2Mbps and 3Mbps
Fully qualified for Bluetooth 3.0
Fully qualified for Bluetooth 4.2 Dual mode
Full–speed Bluetooth operation with Piconet and Scatternet support
1st side lobes(to fc ± 11MHZ)
2st side lobes(to fc ± 22MHZ)
Commom Questions And Answers
Q: What is the MOQ?
A: Generally if you choose the different products, our minimum order qty also will be different.
Q: What about the delivery time?
