Product Details
Place of Origin: China
Brand Name: QOGRISYS
Certification: CE/FCC/ROHS/REACH
Model Number: F11AUUM13-W4
Payment & Shipping Terms
Minimum Order Quantity: 5/pcs
Price: USD 5.5-7.5/pcs
Packaging Details: Reel
Delivery Time: 15-40 workdays
Payment Terms: T/T
Supply Ability: 4000000pcs/month
Chipset: |
RTL8811AU |
WIFI Standard: |
IEEE802.11a/b/g/n/ac |
Frequency: |
2.4GHz/5.8GHz |
Interface: |
USB |
OS Support: |
Windows/Android /Linux |
Security: |
WEP,TKIP,AES,WPA,WPA2 |
Size: |
23.0x17.0x3.0mm |
Application: |
WiFi Extender |
Chipset: |
RTL8811AU |
WIFI Standard: |
IEEE802.11a/b/g/n/ac |
Frequency: |
2.4GHz/5.8GHz |
Interface: |
USB |
OS Support: |
Windows/Android /Linux |
Security: |
WEP,TKIP,AES,WPA,WPA2 |
Size: |
23.0x17.0x3.0mm |
Application: |
WiFi Extender |

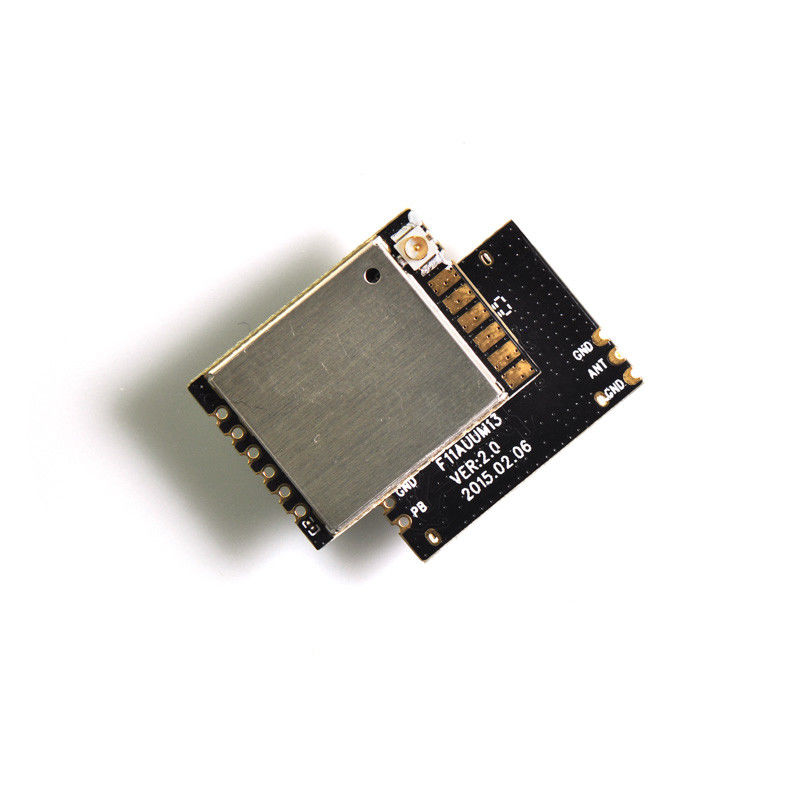

F11AUUM13-W4 is a low-cost and low-power consumption module which has all of the Wi-Fi functionalities. It is a highly-integrated IEEE 802.11 a/b/g/n/ac MAC/Baseband/RF WLAN single chip. For Wireless LAN(WLAN)operation. The integrated module provides USB interface for Wi-Fi . The module provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanism to ensure backward and network compatibility.
The wireless module complies with IEEE 802.11 a/b/g/n/ac standard and it can achieve up to a speed of 433.3Mbps with single stream in 802.11ac draft to connect to the wireless LAN. The integrated module provides USB interface for Wi-Fi . This compact module is a total solution for a combination of Wi-Fi technologies. The module is specifically developed for Smart phones and Portable devices.
USB WiFi Module Detailed Parameters
Features | Descriptions |
MainChipset | RealtekRTL8811AU |
OperatingFrequency |
2.4G:2.4000GHz~2.4835GHz 5G:5.150GHz~5.825GHz |
HostInterface | USB2.0 |
WIFIStandard | IEEE802.11a/b/g/n/ac |
Modulation |
802.11b:QPSK,BPSK,16QAM,64QAMwithOFDM 802.11g/n:BPSK,QPSK,16QAM,64QAMwithOFDM 802.11a:QPSK,BPSK,16QAM,64QAMwithOFDM 802.11ac:QPSK,BPSK,16QAM,64QAM,256QAMwithOFDM |
PHYDatarates |
802.11a:6,9,12,18,24,36,48,54Mbps 802.11b:11,5.5,2,1Mbps 802.11g:6,9,12,18,24,36,48,54Mbps 802.11n:upto150Mbps 802.11ac:upto433.3Mbps |
Pin
|
Name | Description |
1 |
GND
|
Ground
|
2 |
RF
|
Antenna |
3 | GND | Ground |
4 | PB | WPS |
5 | GND | Ground |
6 | DP | USB+ |
7 | DM | USB- |
8 | VDD | 3.3V Input |
9 | LED | LED PIN |
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
& Commercial And OA Application
Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
& Industrial And Vehical Application
Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile
& Medical Application
Medical equipments/Medical instruments
& Other Consumer Electronic Products
Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
