Introduction

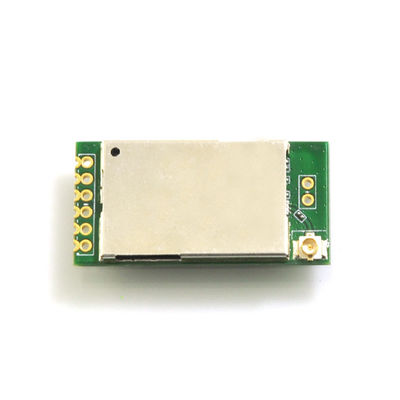

5110N-U is a low-cost module which has all of the Wi-Fi functionalists. The highly integrated module makes the possibilities of web browsing, VoIP, Bluetooth headsets applications. The wireless module complies with IEEE 802.11 a/b/g/n/ac 1x1 MIMO standard and it can achieve up to a speed of 433Mbps with single stream to connect the wireless LAN. The integrated module provides USB interface for Wi-Fi.
Application
The module is specifically developed for Smart TV and OTT Box application.
Features
Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ 802.11ac, or 2.4G/5G 802.11n WLAN applications.
Single-stream spatial up to 433Mbps data rate.
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
Supports USB interface for WLAN.
Environment Compliance
![]() |
![]()
|
|
General Specification
Model Name |
5110N-U |
Product Description |
Support Wi-Fi |
Dimension |
L x W x H: 15 x 30 x 2.8 (typical) mm |
Wi-Fi Interface |
Support USB2.0 |
BT Interface |
None |
Operating temperature |
-10°C to 70°C |
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download form the official website or sales.
