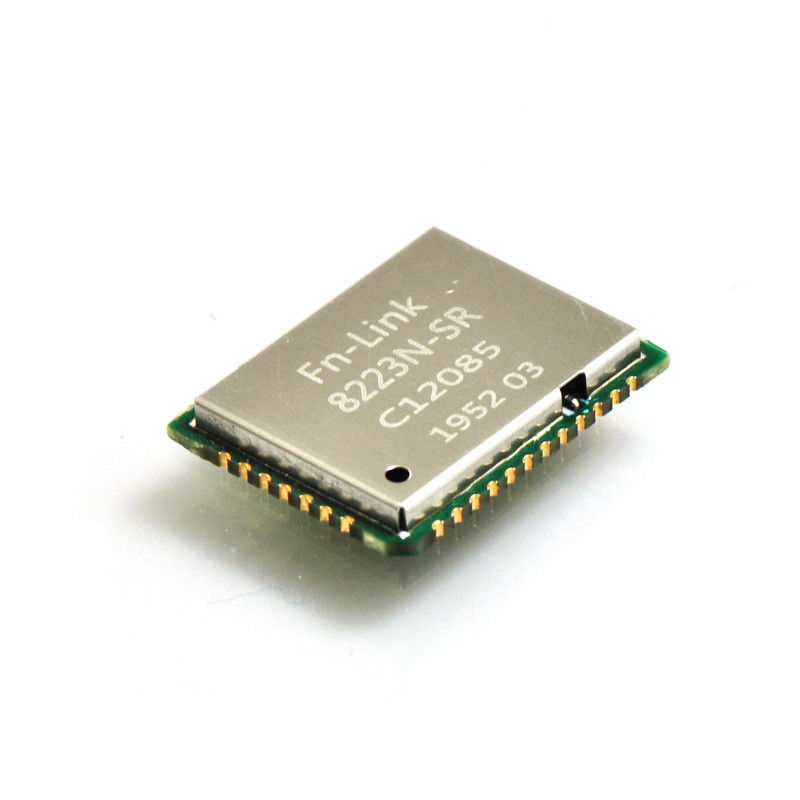

Dual Band SDIO WIFI BLE Wireless Module 2.4g 5.8G For Dvr

Dual Band SDIO WIFI BLE Wireless Module 2.4g 5.8G For Dvr

  • High Light

    WIFI BLE Wireless Module

    ,

    SDIO BLE Wireless Module

    ,

    Dvr SDIO Dual Band Module

  • Chipset
    QCA1023
  • WIFI Standard
    IEEE802.11ab/g/n/ac
  • Frequency
    2.4/5.8GHz
  • Interface
    SDIO
  • OS Support
    Android /Linux
  • Security
    WEP,TKIP,AES,WPA,WPA2
  • Size
    16.6 * 13.0 * 1.8mm
  • Application
    DVR
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    ROHS/REACH
  • Model Number
    8223N-SR
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 4.0-7.0/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

Dual Band SDIO WIFI BLE Wireless Module 2.4g 5.8G For Dvr

 Overview

8223N-SR is a wireless module with both WIFI and Bluetooth capabilities, it has the characteristics of low-cost and low-power consumptio.  The module is an 802.11ac/a/b/g/n Dual -Band WiFi+Bluetooth module  based on Qualcomm QCA1023 chipset,

the data rate up to 433.3Mbps on ac mode. The integrated module provides SDIO3.0 interface for WLAN and a UART/PCM interface for Bluetooth. It is specially designed for Smart phones and Portable devices.



Application  Area

♦ Industrial device
♦ Smart home
♦ Medical apparatus and instruments
♦ Robot
♦ Intelligent Gateway
♦ Remote vehicle
♦ Outdoor IPTV
♦ TV box & Router
♦ Vehicle mounted front


Some important information

Model No: 8223N-SR

Main Chipset: QCA1023

Interface: SDIO

WiFi Standard: IEEE802.11a/b/g/n/ac

Data Rate: 433Mbps

OS Supported: Android/Linux

Frequency: 2.4/5.8GHz


RF Antenna:External Antenna


Temperature:Operating:-30° Cto 85°C
                        Storage:-40° Cto 125°C
A

Certification:

ROHS    REACH



Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
