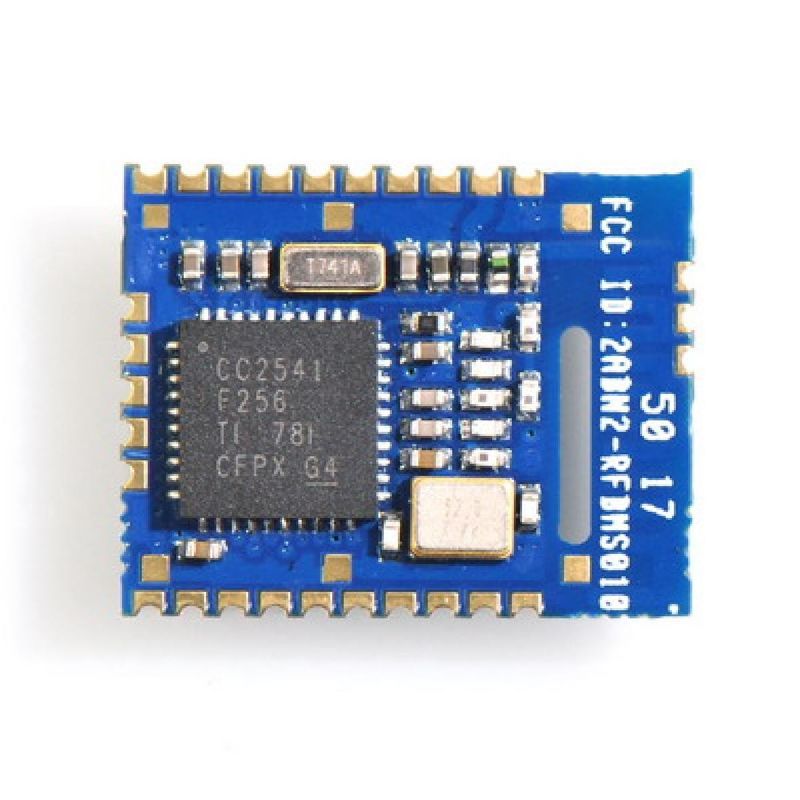

RF-BM-S01A is a Bluetooth Low Energy (BLE) module based on TI CC2541F256, an 8051 core BLE System-on-Chip (SoC). This PCB module integrates a 32 MHz crystal, a 32.768 kHz crystal, an LC balun, an RF matching filter, and a meander line PCB antenna. It is pre-programmed with the BLE 4.0 stack and an application communication protocol over its full speed USB interface. The module is highly suited for systems where ultralow power consumption is required. This is specified by various operating modes. Short transition times between operating modes further enable low power consumption.
This module is ideal for low power wireless sensing device applications including mobile phone accessories, sports, consumer electronics, HID and etc.
Key Information
Bluetooth Version 4.0 low energy (LE, Single Mode) compliant.
High-Performance and Low-Power 8051 Microcontroller Core With Code Prefetch. In-System-Programmable Flash.
12-Bit ADC With Eight Channels and Configurable Resolution. 21 general purpose I/O • I2C Interface
Two Powerful UARTs with Support for Several Serial Protocols.
Excellent Receiver Sensitivity.
Dimension: L17.4 * W13.7 * T1.9mm
Recommended Footprint
