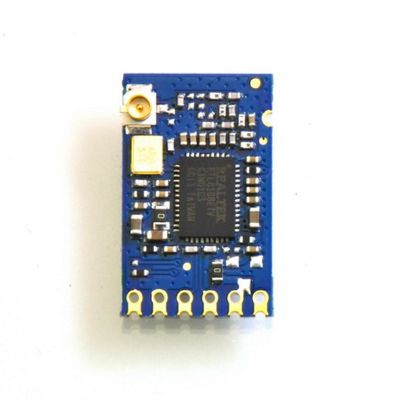

2.4Ghz USB Wifi Module Wireless Transmitter And Receiver With Single Antenna

2.4Ghz USB Wifi Module Wireless Transmitter And Receiver With Single Antenna

  • High Light

    usb wifi bluetooth module

    ,

    802.11 ac wifi module

  • Chipset
    RTL8188ETV
  • Frequency
    2.4GHz
  • Size
    19.7 * 12.0 * 2.0mm
  • Data Rate
    150Mbps
  • Power Supply
    3.3.V
  • Type
    SDIO Wifi Module
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    ROHS/REACH
  • Model Number
    F88ETUM23-WS
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 1.4-2.4/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

2.4Ghz USB Wifi Module Wireless Transmitter And Receiver With Single Antenna

2.4Ghz USB Wifi Module Wireless Transmitter And Receiver With Single Antenna



USB Wifi Module Introduction

F88ETUM23-WS usb wifi module  is a highly integrated single-chip 1*1 MIMO (Multiple In Multiple Out) Wireless LAN (WLAN) USB2.0 network interface controller complying with the 802.11n specification.

F88ETUM23-WS usb wifi module is based on Realtek RTL8188 chip which supports 802.11b/b/n.It is a usb wifi modulle with single external antenna.It provides  excellent performance with low power Consumption.

USB Wifi Module Detailed Parameters

Model No F88ETUM23-WS Main Chipset RTL8188ETV
Interface USB WiFi Standard IEEE802.11b/g/n
Data Rate 150Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Android/Linux
Frequency 2.4GHz Power Supply 3.3V
Size 19.7*12.0*2.0mm RF Chain 1T1R
Operating Temperature 0° Cto 70°C Storage Temperature -40° Cto 80°C

USB Wifi Module Features

Operate at ISM frequency bands (2.4GHz)

USB Interface for WiFi

IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,

Enterprise level security which can apply WPA/WPA2 certification for WiFi.

WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates

USB Wifi Module Application Range

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

Note
Dear customer,please contact sales if you would like to know more details about this sdio wifi module.
