High Light
qualcomm wifi module
,data transmission module
-
ChipsetQCA6174
-
Frequency2.4GHz/5.8GHz
-
Size26.2x23.0x1.9mm
-
Data Rate867Mbps
-
Power Supply3.3V
-
Type5GHz WiFi Module
-
Place of OriginChina
-
Brand NameFN-LINK
-
CertificationROHS/REACH
-
Model NumberF6174PM13-W1
-
Minimum Order Quantity5/pcs
-
PriceUSD 5.9-8/pcs
-
Packaging DetailsReel
-
Delivery Time15-40 workdays
-
Payment TermsT/T
-
Supply Ability4000000pcs/month
Express PCI 5GHz WiFi Module High Data Rate 867Mbps Dual Band QCA6174
High Data Rate 867Mbps Dual Band QCA6174 PCI Express 5GHz WiFi Module
5GHz WiFi Module Introduction

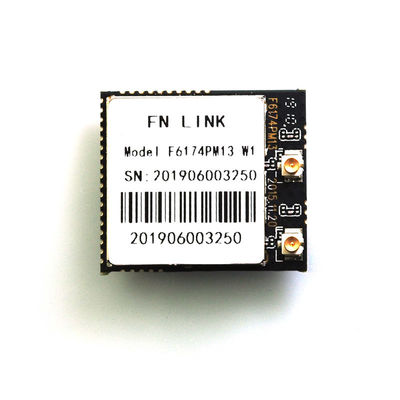

F6174PM13-W1 5ghz wifi module is based on Qualcomm QCA6174 chip which supports 802.11ac+BLE5.0.It is a 5ghz wifi module with dual external antennas and ipex connectors.
5GHz WiFi Module Detailed Parameters
| Model No | F6174PM13-W1 | Main Chipset | QCA6174 |
| Interface | PCIe/Uart | WiFi Standard | IEEE802.11a/b/g/n/ac |
| Data Rate | 867Mbps | Certification | ROHS REACH |
| RF Antenna | External Antenna | OS Supported | Linux/Android |
| Frequency | 2.4GHz/5.8GHz | Power Supply | 3.3V |
| Size | 26.2x23.0x1.9mm | RF Chain | 2T2R |
| Operating Temperature | -30° C to 85°C | Storage Temperature | -40° C to 125°C |
5GHz WiFi Module Features
Support 802.11b/g/n/ac 2T2R WLAN and Bluetooth
Compatible with IEEE 802.11b standard to provide wireless 11Mbps date rate
Compatible with IEEE 802.11a standard to provide wireless 54Mbps date rate
Compatible with IEEE 802.11g standard to provide wireless 54Mbps date rate
Compatible with IEEE 802.11n standard to provide wireless 300Mbps date rate
Compatible with IEEE 802.11ac standard to provide wireless 866.7Mbps date rate
Operation at 2.4~2.5GHz and 5.15~5.825GHz frequency band to meet worldwide regulations
Provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanisms to ensure backward and network compatibility
Supports infrastructure networks via Access Point and ad-hoc network via peer-to-peer communication
Supports IEEE 802.11i(WPA and WPA2). Open, shared key, and pair-wise key authentication services
Bluetooth 5.0 compliant
Bluetooth Low Energy Support
Supports AFH to dynamically detect channel quality to improve transmission quality
5GHz WiFi Module Application Range
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
& Commercial And OA Application
Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
Note
