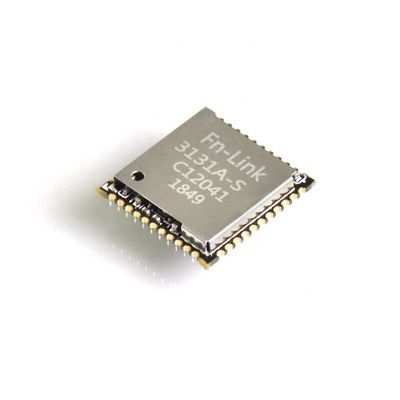

Low Power SDIO WiFi Module Hisilicon Hi1131S 2.4G For Ring Video Doorbell

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: FCC/CE/SRRC/ROHS/REACH

Model Number: 3131A-S

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 2-3/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

wifi bt combo module

,

high speed wifi module

Chipset:
Hi1131S
WIFI Standard:
IEEE802.11b/g/n
Frequency:
2.4GHz
Interface:
SDIO
OS Support:
LiteOS
Security:
WEP,TKIP,AES,WPA,WPA2
Size:
12.0x12.0x1.9mm
Application:
WiFi Doorbell
Chipset:
Hi1131S
WIFI Standard:
IEEE802.11b/g/n
Frequency:
2.4GHz
Interface:
SDIO
OS Support:
LiteOS
Security:
WEP,TKIP,AES,WPA,WPA2
Size:
12.0x12.0x1.9mm
Application:
WiFi Doorbell
Low Power SDIO WiFi Module Hisilicon Hi1131S 2.4G For Ring Video Doorbell

Ultra Low Power Hisilicon Hi1131S 2.4G SDIO WiFi Module For Ring Video Doorbell



SDIO WiFi Module Introduction

3131A-S is a small size and low profile of WiFi module,board size is 12mm*12mm with module thickness of 1.7mm. It can be easily manufactured on SMT process and highly suitable for tablet PC,ultra book,mobile device and consumer products.It provides SDIO interface for WiFi.The WiFi throughput can go up to150Mbps in theory by using 1x1 802.11b/g/n MIMO technology.
3131A-S uses highly integrated WiFi single chip based on advanced COMS process. 3131A-S integrates whole WiFi function blocks into a chip, such as SDIO/MPU,MAC, BB,AFE,RFE, PA, EEPROM and LDO/SWR, except fewer passive components remained on PCB.
This compact module is a total solution for WiFi technology. The module is specifically developed for Smartphones and Portable devices.

SDIO WiFi Module Detailed Parameters

Model No 3131A-S Main Chipset Hi1131S
Interface SDIO WiFi Standard IEEE802.11b/g/n
Data Rate 150Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported LiteOS
Frequency 2.4GHz Power Supply 3.3V
Size 12.0x12.0x1.9mm RF Chain 1T1R
Operating Temperature -30° Cto 70°C Storage Temperature -40° Cto 125°C


SDIO WiFi Module Features

Operate at ISM frequency bands (2.4GHz)

SDIO Interface for WiFi

IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Enterprise level security which can apply WPA/WPA2 certification for WiFi

WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rate

SDIO WiFi Module Application Range

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products

Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
