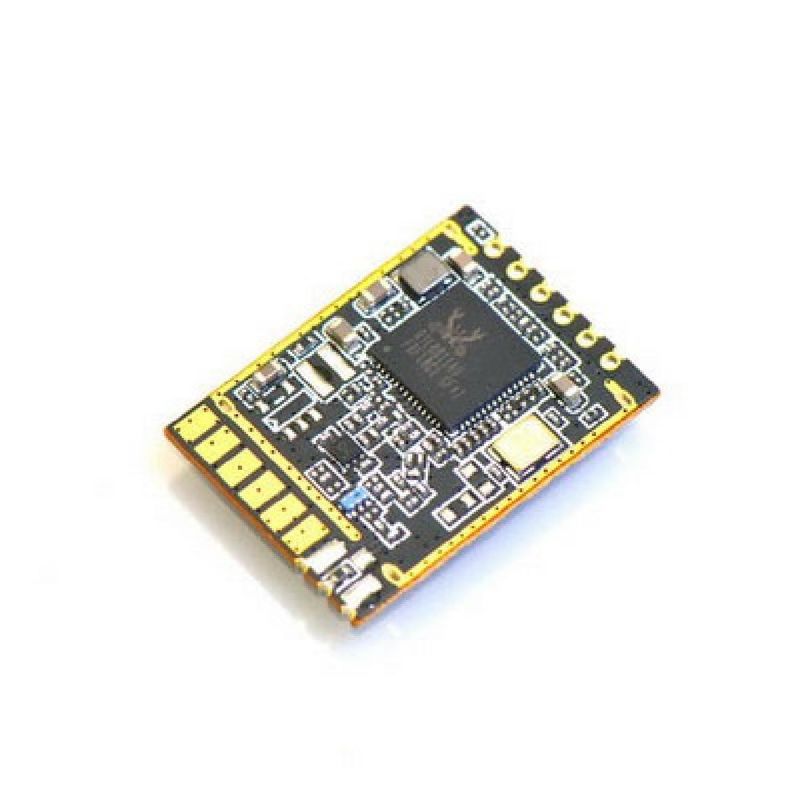

Realteak Dual Band Wifi Router Module Low Power Wifi Video Transmitter Module

Product Details

Place of Origin: China

Brand Name: QOGRISYS

Certification: ROHS/REACH

Model Number: F11AUUM23-W3

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD4.9-6.5/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

wifi and bluetooth module

,

wifi transmitter and receiver module

Chipset:
RTL8811AU
WiFi Standard:
IEEE802.11a/b/g/n/ac
Frequency:
2.4/5.8Ghz
Interface:
USB
OS Support:
Android/Linux
Security:
WEP,TKIP,AES,WPA,WPA2
Size:
23.0x17.0x3.0mm
Application:
IOT Device
Chipset:
RTL8811AU
WiFi Standard:
IEEE802.11a/b/g/n/ac
Frequency:
2.4/5.8Ghz
Interface:
USB
OS Support:
Android/Linux
Security:
WEP,TKIP,AES,WPA,WPA2
Size:
23.0x17.0x3.0mm
Application:
IOT Device
Realteak Dual Band Wifi Router Module Low Power Wifi Video Transmitter Module

Low Power Hdmi Transmitter Dual Band Wifi Module Dual Band Wifi Router



Dual Band Wifi Module Introduction

This document is to specify the product requirements for 802.11a/b/g/n/ac USB Module. This Card is based on Realteak RTL8811AU chipset that complied with IEEE 802.11b/g/n/ac Draft 3.0 compatible WLAN ,and it is also backward complied with IEEE 802.11a standard from 5.15~5.825GHz wideband and IEEE 802.11b/g standard from 2.4~2.5GHz. It can be used to provide up to 54Mbps for IEEE 802.11a and IEEE 802.11g,11Mbps for IEEE 802.11b and 150Mbps for IEEE 802.11n and 433.3Mbps for IEEE 802.11ac to connect your wireless LAN.

Dual Band Wifi Module Detailed Parameters

Module No F11AUUM23-W3 Main Chipset RTL8811AU
Interface USB WiFi Standard IEEE802.11a/b/g/n/ac
Data Rate 433Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Linux/Android
Frequency 2.4/5.8GHz Power Supply 3.3V
Size 23.0x17.0x3.0mm RF Chain 1T1R
Operating Temperature 0° C to 70°C Storage Temperature -40° C to 80°C

Dual Band Wifi Module Features

Compatible with IEEE 802.11a standard to provide wireless 54Mbps date rate.

Compatible with IEEE 802.11g standard to provide wireless 54Mbps date rate.

Compatible with IEEE 802.11b standard to provide wireless 11Mbps date rate.

Compatible with IEEE 802.11n standard to provide wireless 150Mbps date rate.

Compatible with IEEE 802.11ac standard to provide wireless 433.3Mbps date rate.

Operation at 2.4~2.5GHz and 5.15~5.825GHz frequency band to meet worldwide regulations

Provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanisms to ensure backward and network compatibility.

Supports IEEE 802.11i(WPA and WPA2),WAPI,. enhanced security

Dual Band Wifi Module Application Range

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products

Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
