IEEE 802.11B/G/N IOT Wireless Wifi Module 2.4GHz 1T1R 150Mbps PHY Rate Light Weight
-
High Light
bluetooth 4.0 module
,wifi control module
-
ChipsetRTL8711AM
-
MCUYES
-
PHY Rate150Mbps
-
Wi-Fi DirectSupport
-
ProtocolTCP/IP
-
PortUART,I2C,SPI,PWM,ADC
-
Place of OriginChina
-
Brand NameFN-LINK
-
CertificationROHS/REACH
-
Model NumberF11AMIM13-B4
-
Minimum Order Quantity5/pcs
-
PriceUSD 5.4-6.5/pcs
-
Packaging DetailsReel
-
Delivery Time15-40 workdays
-
Payment TermsT/T
-
Supply Ability4000000pcs/month
IEEE 802.11B/G/N IOT Wireless Wifi Module 2.4GHz 1T1R 150Mbps PHY Rate Light Weight

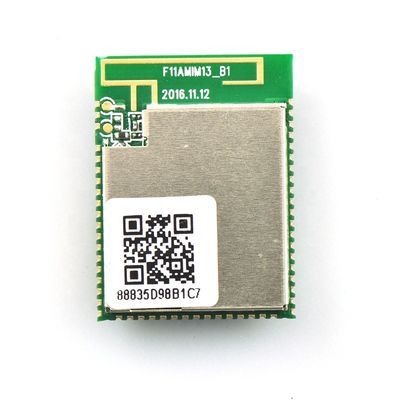

IEEE 802.11B/G/N IOT WiFi Module 2.4GHz 1T1R WiFi + NFC Module
IOT WiFi Module Part Features
General
24mm*18mm*2.2mm
CMOS MAC, Baseband PHY, and RF in the module for 802.11b/g/n compatible WLAN
Complete 802.11n solution for 2.4G band
150Mbps receive PHY rate and 150Mbps transmit PHY rate using 40MHz bandwidth
Standards Supported
802.11b/g/n compatible WLAN
802.11e QoS Enhancement(WMM)
802.11i(WPA,WP2). Open, shared key, and pair-wise key authentication services
WiFi Direct support
Light Weight TCP/IP protocol
Block Diagram
Operating conditions
| Operating conditions | |
| Operating Voltage | 3.3±10% Vdc |
| Operating Temperature | -20°C to +85°C |
| Storage Temperature | -40°C to +125°C |
RF Data
Operating Frequency:2.400～2.4835GHz
Channels:(WiFi)
USA/Canada: channel 1~11;
Europe/China/Australia: channel 1~13;
Japan: channel 1~14
Modulation:(WiFi)
802.11b(DSSS): CCK(11, 5.5Mbps), DQPSK(2Mbps), DBPSK(1Mbps);
802.11g(OFDM): BPSK(9,6Mbps), QPSK(18,12Mbps),16QAM(36,24Mbps), 64QAM(54,48Mbps);
802.11n(OFDM): BPSK, QPSK, 16QAM, 64QAM(150Mbps)
Outline Drawing
PCB Layout Reference
