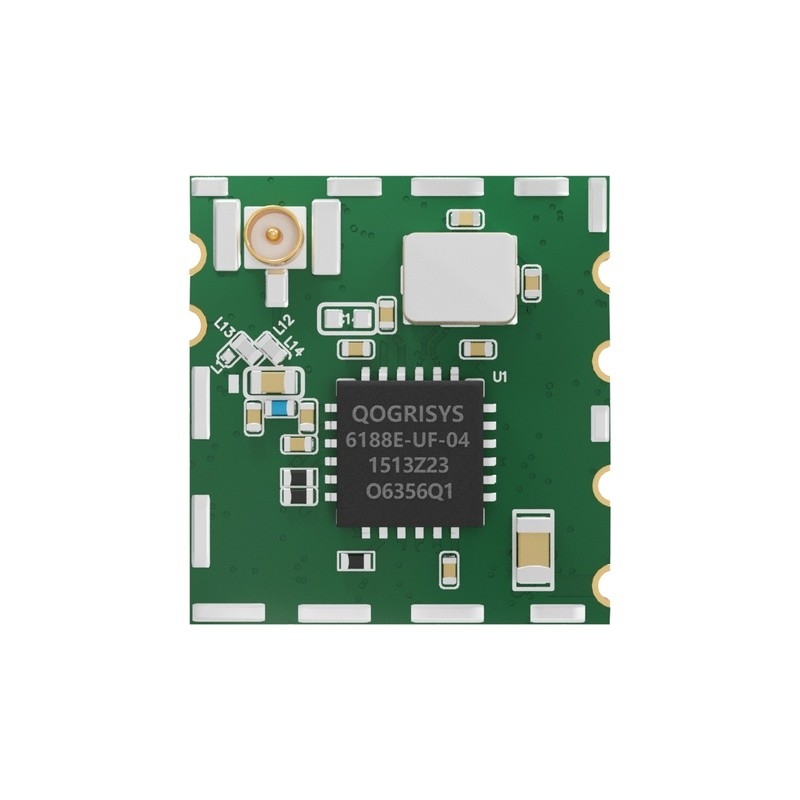

Single Band Realtek WiFi Module USB 72.2Mbps 1X1 RTL8188FTV

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: ROHS/REACH

Model Number: 6188E-UF-01

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 1.4-2.4/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

Single Band Realtek WiFi Module

,

72.2Mbps USB Realtek WiFi Module

,

1X1 Wifi Wireless Module

Chipset:
RTL8188FTV
WiFi Standard:
IEEE802.11b/g/n
Frequency:
2.4Ghz
Speed:
72.2Mbps
Compact:
12.2x13.0x1.5mm
Key Word:
Wifi Wireless Module
Chipset:
RTL8188FTV
WiFi Standard:
IEEE802.11b/g/n
Frequency:
2.4Ghz
Speed:
72.2Mbps
Compact:
12.2x13.0x1.5mm
Key Word:
Wifi Wireless Module
Single Band Realtek WiFi Module USB 72.2Mbps 1X1 RTL8188FTV

RTL8188FTV Wi-Fi Single-band 1X1 WiFi Module USB 72.2Mbps



Introduction

6188E-UF is a low-cost and low-power consumption module which has all of the Wi-Fi functionalities. It uesd RTL8188FTV chipset,it's a highly-integrated IEEE 802.11 a/b/g/n MAC/Baseband/RF WLAN single chip. For Wireless LAN(WLAN)operation. The integrated module provides USB interface for Wi-Fi . The module provides simple legacyand 20MHz co-existence mechanisms to ensure backward and network compatibility.



6188E-UF uses highly integrated Wi-Fi single chip based on advanced COMS process.6188E-UF integrates whole Wi-Fi function blocks into a chip, such as USB/PCM, MAC,BB, AFE, RFE, PA, EEPROM and LDO/SWR, except fewer passive components remained on PCB.



This compact module is a total solution for Wi-Fi technology. The module is specifically developed for Smart phones and Portable devices.





Features
- Operate at ISM frequency bands (2.4GHz)
- USB for Wi-Fi
- IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d IEEE 802.11e, IEEE 802.11h, IEEE 802.11i
- Enterprise level security which can apply WPA/WPA2 certification for Wi-Fi.
- Wi-Fi 1 transmitter and 1 receiver allow data rates supporting up to 72.2 Mbps downstream and 72.2 Mbps upstream PHY rates

Packaging Details

Port:Shenzhen

Lead Time:

Quantity(Pieces) 5 5 - 1000 >1000
Est. Time(days) 7 10 To be negotiated

Design Diagram

Single Band Realtek WiFi Module USB 72.2Mbps 1X1 RTL8188FTV 0

RTL8188FTV Serials Wifi Module

2.4Ghz

Small size

Integrated TCP/IP protocol

Powerful HW&SW Support



Application Filed

Single Band Realtek WiFi Module USB 72.2Mbps 1X1 RTL8188FTV 1
