Home > products > USB WiFi Module > 2x2 MIMO USB WiFi Module 5G AR1021X 8121N-UH WEP For HDMI

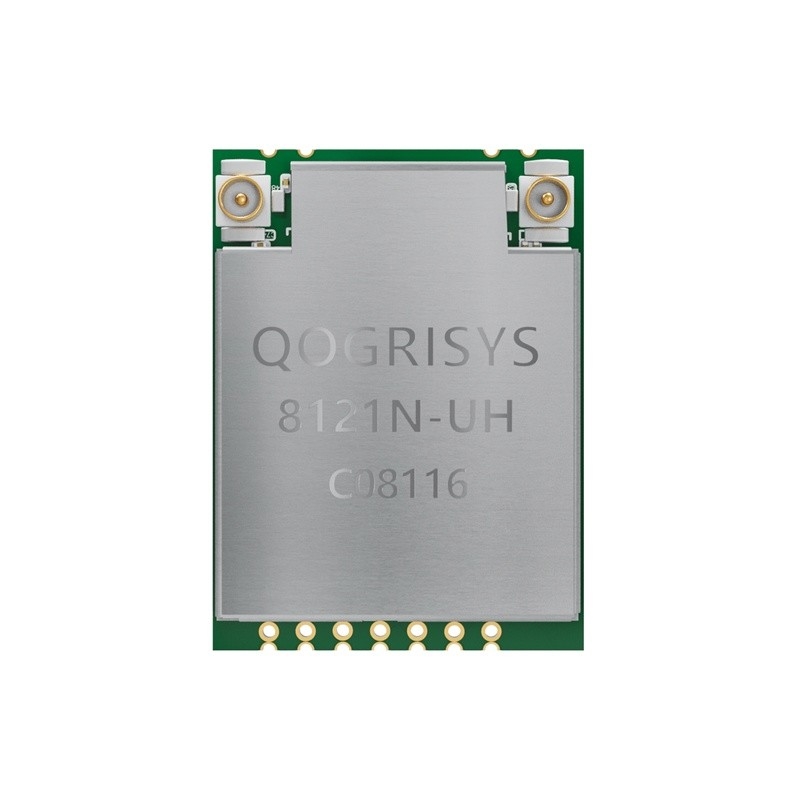

2x2 MIMO USB WiFi Module 5G AR1021X 8121N-UH WEP For HDMI

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: ROHS/REACH

Model Number: 8121N-UH

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 5.8-8/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

2x2 MIMO USB WiFi Module

,

AR1021X USB WiFi Module

,

WEP HDMI RF Transceiver Module

Chipset:
AR1021X
WIFI Standard:
IEEE802.11a/n
Frequency:
5.8GHz
Interface:
USB
OS Support:
Android /Linux
Security:
WEP,TKIP,AES,WPA,WPA2
Size:
27.0x20.0x2.3mm
Application:
Wireless HDMI Transmitter
Chipset:
AR1021X
WIFI Standard:
IEEE802.11a/n
Frequency:
5.8GHz
Interface:
USB
OS Support:
Android /Linux
Security:
WEP,TKIP,AES,WPA,WPA2
Size:
27.0x20.0x2.3mm
Application:
Wireless HDMI Transmitter
2x2 MIMO USB WiFi Module 5G AR1021X 8121N-UH WEP For HDMI

8121N-UH IEEE 802.11 a/n 2x2 MIMO High Power 5G AR1021X For HDMI





Whether you run a broadcast news station, your own production company, or work as a freelance video grapher, you can benefit from a wireless HDMI transmitter. Why?
Because this equipment comes with 6 benefits that you simply can’t find anywhere else:
1.Easy to Use
Running cables may still be a way that many people do business, but it’s a real pain! If you’re trying to cover breaking news, you may not have time to run a bunch of cables just to get a signal. Or, if you’re shooting video in a crowded spot, having a bunch of cables everywhere could make things downright dangerous.
Instead, with a wireless HDMI, all you have to do is turn your camera on and start shooting. Luckily, these devices are strong enough to transmit through walls and ceilings, so you’ll never be left searching for a signal. You won’t even need a power cord for the transmitter itself! Does it get any easier than that?
2.Cost Effective
Just a few years ago, the terms “wireless HDMI transmitter” and “affordable” didn’t exactly go together. Up until recently, this equipment was reserved for people with the biggest budgets. If you were just an Average Joe, you simply couldn’t afford to tap into the power of this technology.
Luckily, the times have changed. Today, a good transmitter will fit into just about any budget. And, a good retailer will have plenty of technical support, so that you can work out any kinks free of charge.
3.Convenience
It may seem hard to believe that all of your HD and SD video can be transmitted with a tiny piece of equipment, but it’s true! A good wireless HDMI transmitter weighs less than a smart phone, which means you can feel free to stick it in your pocket and carry it with you anywhere.
4.Constant Quality
When it comes to audio and video, HDMI is as good as it gets. The video itself is “uncompressed” — which means it looks cleaner and less processed than its other counterparts. Because a wireless HDMI transmitter can send video without compressing it, you’ll never have to worry about your video looking anything other.



8121N-UH WiFi Module Detailed Parameters

Model No 8121N-UH Main Chipset AR1021X
Interface USB WiFi Standard IEEE802.11a/n
Data Rate 300Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Linux/Android
Frequency 5.8GHz Power Supply 5V
Size 27.0x20.0x2.3mm RF Chain 2T2R
Operating Temperature -30° C to 85°C Storage Temperature -40° C to 125°C





8121N-UH WiFi Module Features

Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ.

802.11a/n 5G WLAN applications.

Dual-stream spatial mulitiplexing up to 300Mbps data rate.

Supports 20/40MHz bandwidth.

Supports USB interface for WLAN.

Integrated high power FEM.



2x2 MIMO USB WiFi Module 5G AR1021X 8121N-UH WEP For HDMI 0
