External Antenna 2.4G Wireless Module For Mobile Device RTL8189FTV

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: FCC/CE/SRRC/ROHS/REACH

Model Number: F89FTSM13-W3

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 1.3-2.2/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

External Antenna 2.4G Wireless Module

,

Mobile Device 2.4G Wireless Module

,

RTL8189FTV SDIO Wireless Module

Chipset:
RTL8189FTV
WIFI Standard:
IEEE802.11b/g/n
Interface:
SDIO
Size:
12.0x12.0x1.6mm
Antenna:
External Antenna
Type:
SDIO WiFi Module
Chipset:
RTL8189FTV
WIFI Standard:
IEEE802.11b/g/n
Interface:
SDIO
Size:
12.0x12.0x1.6mm
Antenna:
External Antenna
Type:
SDIO WiFi Module

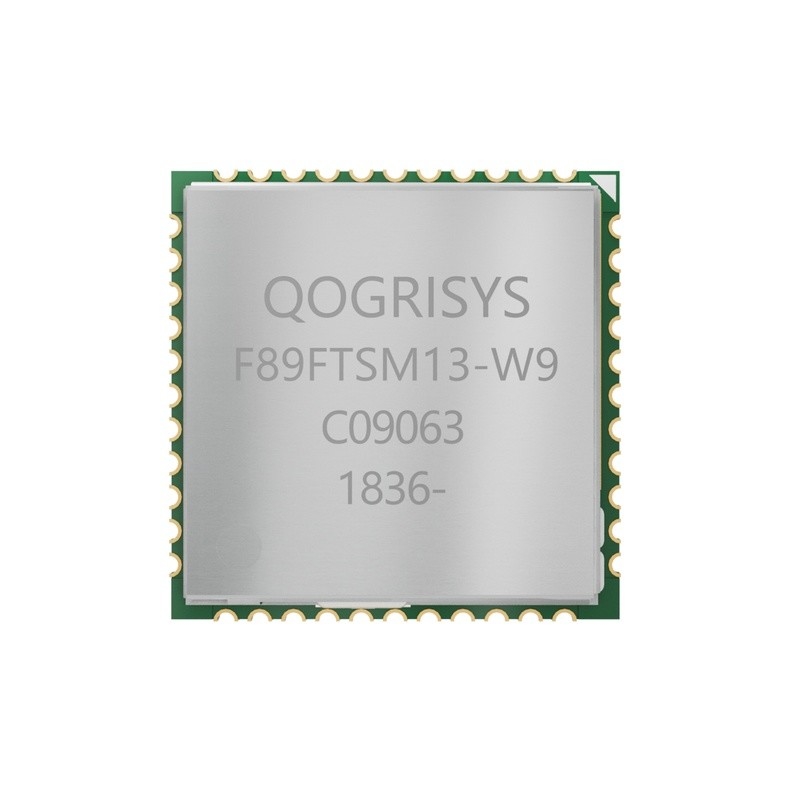

External Antenna 2.4G Wireless Module For Mobile Device RTL8189FTV

External Antenna 2.4G Wireless Module For Mobile Device RTL8189FTV



Introduction

F89FTSM13-W3 is a highly integrated and excellent performance Wireless LAN (WLAN) SDIO network interface device. High-speed wireless connection up to 150 Mbps. The general hardware for the module is shown in Figure 1. This WLAN Module design is based on Realtek RTL8189FTV. It is a highly integrated single-chip 1T1R Wireless LAN (WLAN) SDIO network interface controller complying with the 802.11n specification. It combines a MAC, a 1T1R capable baseband, and RF in a single chip. It is designed to provide excellent performance with low power Consumption and enhance the advantages of robust system and cost-effective.



Features

Operate at ISM frequency bands (2.4GHz)

SDIO Interface for WiFi
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE802.11n,
Enterprise level security which can apply WPA/WPA2 certification for WiFi.
WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates



Application Range

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products
