RTL8822CS IEEE 802.11AC SDIO 3.0 5Ghz WiFi Module

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: ROHS/REACH

Model Number: 6222B-SRC-00

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 5.1-7/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

IEEE 802.11AC 5Ghz WiFi Module

,

SDIO 3.0 5Ghz WiFi Module

,

RTL8822CS

Product Type:
Wireless Module
WIFI Standard:
IEEE802.11a/b/g/n/ac
Specification:
L X W X H: 15 X 13 X 2.15 Mm (typical)
Output Power:
17dBm ± 1.5 DB(Max)
Transport Package:
Reel
HS Code:
8517629900
Product Type:
Wireless Module
WIFI Standard:
IEEE802.11a/b/g/n/ac
Specification:
L X W X H: 15 X 13 X 2.15 Mm (typical)
Output Power:
17dBm ± 1.5 DB(Max)
Transport Package:
Reel
HS Code:
8517629900
RTL8822CS IEEE 802.11AC SDIO 3.0 5Ghz WiFi Module

IEEE 802.11AC Dual Band Wifi Adapter RTL8822CS 5Ghz WiFi Module

Quick Review Of 6222B-SRC-00

Realtek RTL8822CS
2.4GHz maximum 17dBm ± 2 dB output power & 5GHz maximum 12 dBm ± 2 dB output power (per chain)
IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n
2X2 MIMO Technology & up to 867Mbps
SDIO 3.0 interface


Network Parameter Of 2.4G

Feature Description
WLAN Standard IEEE 802.11 b/g/n Wi-Fi compliant
Frequency Range 2.400 GHz ~ 2.497 GHz (2.4 GHz ISM Band)
Number of Channels 2.4GHz:Ch1 ~ Ch14
Spectrum Mask Min. b/g/n Typ. b/g/n Max. b/g/n Unit b/g/n
1st side lobes(to fc ± 11MHZ) - -43/-30/-40 - dBr
2st side lobes(to fc ± 22MHZ) - -52/-33/-58 - dBr
Freq. Tolerance -20/-20/-20 - 20/20/20 ppm


Network Parameter Of 5.8G

Conditions : VBAT=3.3V ; VDDIO=3.3V ; Temp:25°C



Feature Description
WLAN Standard IEEE 802.11a/n/ac 2x2, Wi-Fi compliant
Frequency Range 4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band)
Number of Channels 5.0GHz:Please see the table1
Test Items Typical Value EVM
Output Power 802.11a /54Mbps : 15 dBm ± 1.5 dB EVM £ -25dB
802.11n /MCS7 : 14 dBm ± 1.5 dB EVM £ -28dB
802.11ac /MCS9 : 13 dBm ± 1.5 dB EVM £ -32dB



Marking Description

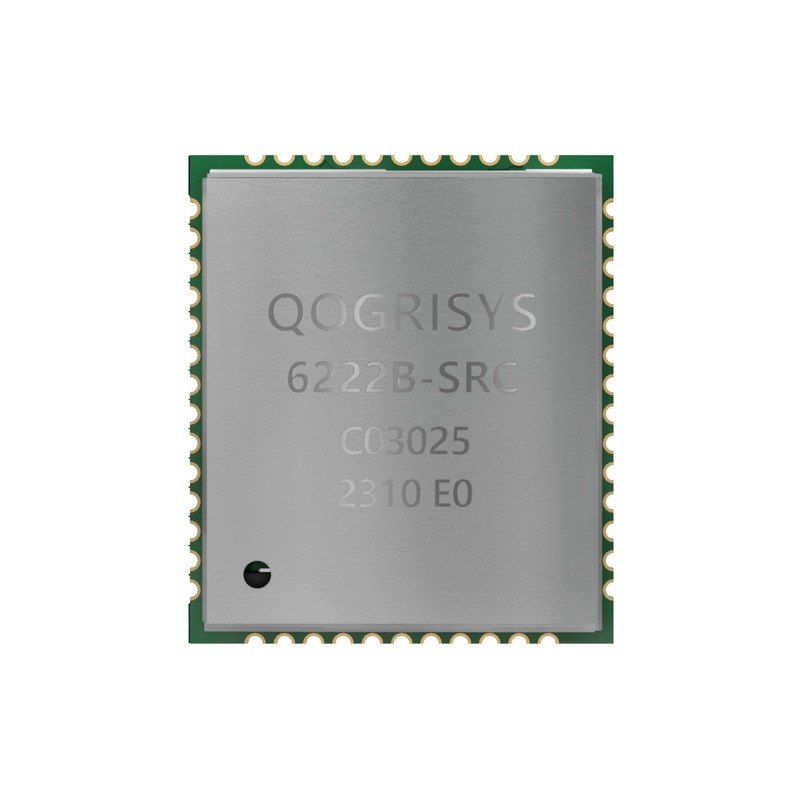

RTL8822CS IEEE 802.11AC SDIO 3.0 5Ghz WiFi Module 0







Packing Detail

RTL8822CS IEEE 802.11AC SDIO 3.0 5Ghz WiFi Module 1
