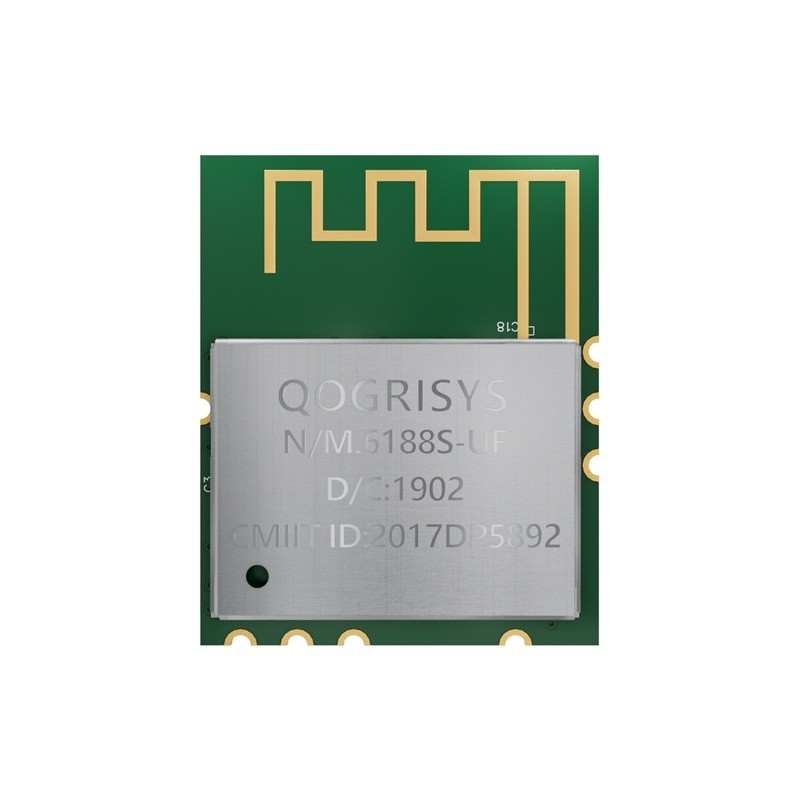

Internal PCB Antenna USB RTL8188FTV Realtek WiFi Module

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: CE/FCC/IC/KCC/SRRC/TELEC/NCC/ROHS/REACH

Model Number: 6188S-UF

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 1.4-2.4/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

RTL8188FTV USB Wifi Module

,

PCB Antenna Wifi Video Module

Single Band:
Yes,2.4g
RF Chain:
1T1R
Operating Frequency:
2.400~2.4835GHz
Antenna:
On Board
Working Temp:
0°C-70°C
LXWXH:
14.8x18.2x1.9mm
Single Band:
Yes,2.4g
RF Chain:
1T1R
Operating Frequency:
2.400~2.4835GHz
Antenna:
On Board
Working Temp:
0°C-70°C
LXWXH:
14.8x18.2x1.9mm
Internal PCB Antenna USB RTL8188FTV Realtek WiFi Module

USB Interface RTL8188FTV Realtek WiFi Module Internal PCB Antenna

Main Date Of 6188S-UF

Model Name 6188S-UF
Product Description Support Wi-Fi functionality
Dimension L x W x H: 14.8 x 18.2 x1.9 (typical) mm
Wi-Fi Interface Support USB2.0
Operating temperature 0°C to 70°C
Storage temperature -40°C to 85°C
RoHS All hardware components are fully compliant with EU RoHS directive

Power Consumption For You Reference(VCC33 = 3.3V(Unit:mA)

Wifi on mode:126

TX(2.4G HT40):232

RX(2.4G HT40):140

USB WiFi Module Pin Assignment

Internal PCB Antenna USB RTL8188FTV Realtek WiFi Module 0

Pin Definition

NO Name Type Description Voltage
1 GND - Ground connections
2 USB_DP I/O USB2.0 differential pair for WLAN
3 USB_DM I/O USB2.0 differential pair for WLAN
4 VDD33 P Main power voltage source input 3.3V 3.3V
5 GND - Ground connections
6 RF0 I/O Wlan RF I/O, the pin can float if use internal antenna
7 GND - Ground connections
8 GND - Ground connections

P:POWER I:INPUT O:OUTPUT

Some Applications

Internal PCB Antenna USB RTL8188FTV Realtek WiFi Module 1
