2.4Ghz USB WiFi Module Wireless Data Transmitter And Receiver In RTL8723DS

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: ROHS/REACH

Model Number: 6223B-SRD

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 2.1-3/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

embedded wifi mod

,

wifi speaker module

Product Description:
Support Wi-Fi/Bluetooth Functionalities
Wi-Fi Interface:
Support SDIO V3.0
BT Interface:
UART / PCM
Operating Temperature:
0°C To 70°C
Power Supply:
3.3.V
Status:
Mass Production
Product Description:
Support Wi-Fi/Bluetooth Functionalities
Wi-Fi Interface:
Support SDIO V3.0
BT Interface:
UART / PCM
Operating Temperature:
0°C To 70°C
Power Supply:
3.3.V
Status:
Mass Production
2.4Ghz USB WiFi Module Wireless Data Transmitter And Receiver In RTL8723DS

2.4Ghz Realtek WiFi Module Wireless Data Transmitter And Receiver In RTL8723DS



First View

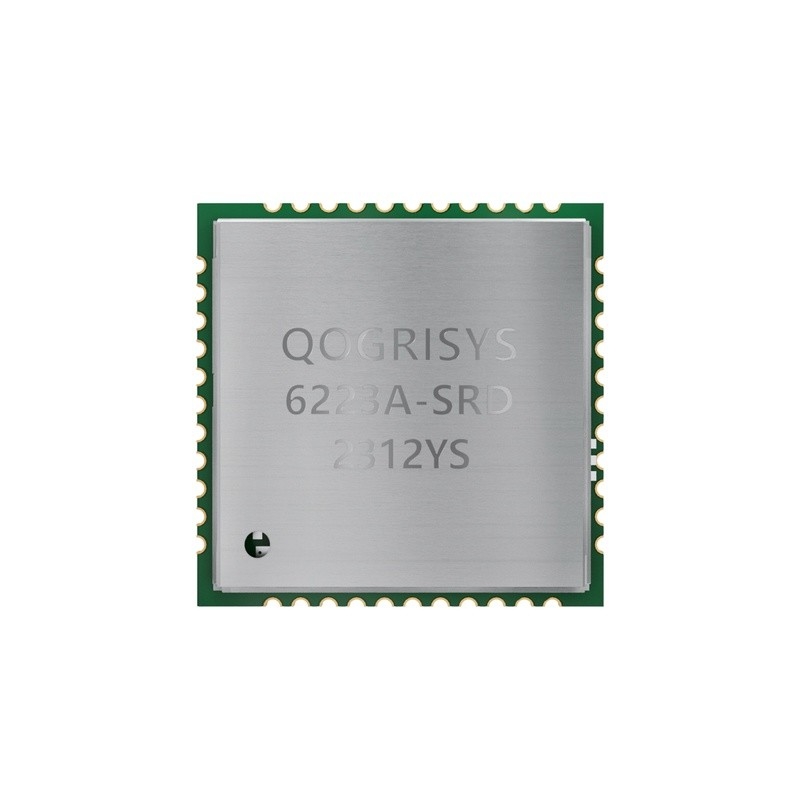

6223B-SRD sdio wifi mdoule is a low profile of WiFi bluetooth  module with LGA (Land-Grid Array) footprint, dimension is 15mm*13mm with module thickness of 1.5mm. It can be easily manufactured on SMT process and highly suitable for tablet PC, ultra book, mobile device and consumer products.

Recommended Operating Rating

  Min. Typ. Max. Uint
Operating Temperature 0 25 70 Deg C
VCC33 3.15 3.3 3.45 V
VDDIO 1.7 1.8 or 3.3 3.45


Marking Description SDIO PIN Description

The module supports SDIO version 3.0 for all 1.8V 4-bit UHSI speeds: SDR50(100 Mbps), and DDR50(50MHz, dual rates) in addition to the 3.3V default speed(25MHz) and high speed (50 MHz). It has the ability to stop the SDIO clock and map the interrupt signal into a GPIO pin. This ‘out-of-band’ interrupt signal notifies the host when the WLAN device wants to turn on the SDIO interface. The ability to force the control of the gated clocks from within the WLAN chip is also provided.

Package

1.Reel

A roll of 2000pcs

2.The take-up package

Using self-adhesive tape

Size of black tape: 24mm*32.6m The cover tape: 2.13mm*32.6m

Color of plastic disc: blue

A roll of 2000pcs
