RTL8188FTV Low Cost Embedded Wifi Module Wireless Usb Adapter With IPEX Connector

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: ROHS/REACH

Model Number: 6188E-UF-00

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 1.4-2.4/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

802.11 ac wifi module

,

wifi camera module

Chipset:
RTL8188FTV
Frequency:
2.4Ghz
Size:
12.2x13.0x1.5mm
Data Rate:
72.2Mbps
Power Supply:
3.3.V
Type:
USB Wifi Module
Chipset:
RTL8188FTV
Frequency:
2.4Ghz
Size:
12.2x13.0x1.5mm
Data Rate:
72.2Mbps
Power Supply:
3.3.V
Type:
USB Wifi Module

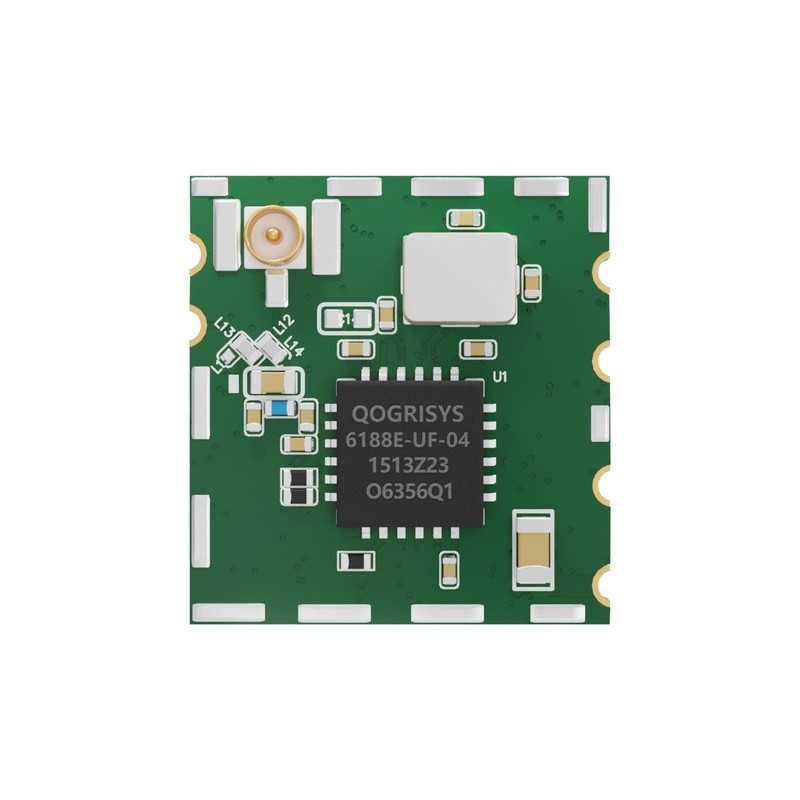

RTL8188FTV Low Cost Embedded Wifi Module Wireless Usb Adapter With IPEX Connector

RTL8188FTV USB Wifi Module Wireless Usb Adapter With IPEX Connector



USB Wifi Module Introduction

6188E-UF usb wifi module is a small size and low profile of WiFi module, board size is 12.2mm*13mm with module thickness of 1.5mm. It can be easily manufactured on SMT process and highly suitable for tablet PC, ultra book, mobile device and consumer products.

6188E-UF usb wifi module is based on Realtek RTL8188ftv  chip which supports 802.11b/b/n.It is a usb wifi modulle with single external antenna.

USB Wifi Module Detailed Parameters

Model No 6188E-UF-00 Main Chipset RTL8188FTV
Interface USB WiFi Standard IEEE802.11b/g/n
Data Rate 72.2Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Linux/Android
Frequency 2.4GHz Power Supply 3.3V
Size 12.2x13.0x1.5mm RF Chain 1T1R
Operating Temperature 0° C to 70°C Storage Temperature -40° C to 125°C

USB Wifi Module Features

Operate at ISM frequency bands (2.4GHz)


USB for WiFi


IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i


Enterprise level security which can apply WPA/WPA2 certification for WiFi.


WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates

USB Wifi Module Application Range

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

Note


Dear customer,please contact sales if you would like to know more details about 6188e-uf usb wifi module.
