Home > products > SDIO WiFi Module > RTL8189ETV Combined Wifi Bluetooth Module Realtek Wifi Module Highly Integrated

RTL8189ETV Combined Wifi Bluetooth Module Realtek Wifi Module Highly Integrated

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: ROHS/REACH

Model Number: F89ETSM13-W2

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 1.4-2.4/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

high speed wifi module

,

wifi low energy module

Chipset:
RTL8189ETV
Frequency:
2.4GHz
Size:
12.0 * 12.0 * 1.8mm
Data Rate:
150Mbps
Power Supply:
3.3.V
Type:
SDIO Wifi Module
Chipset:
RTL8189ETV
Frequency:
2.4GHz
Size:
12.0 * 12.0 * 1.8mm
Data Rate:
150Mbps
Power Supply:
3.3.V
Type:
SDIO Wifi Module
RTL8189ETV Combined Wifi Bluetooth Module Realtek Wifi Module Highly Integrated

RTL8189ETV SDIO Wifi Module Wireless Data Transmission Module



SDIO Wifi Module Introduction

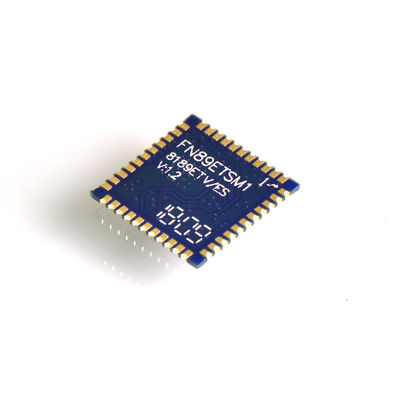

F89ETSM13-W2 is a highly integrated and excellent performance Wireless LAN (WLAN) SDIO network interface device. High-speed wireless connection up to 150 Mbps.

F89ETSM13-W2 sdio wifi module is based on Realtek RTL8188etv chip which supports 802.11b/b/n.It is a sdio wifi modulle with single external antenna.

SDIO Wifi Module Detailed Parameters

Model No F89ETSM13-W2 Main Chipset RTL8189ETV
Interface SDIO 2.0 WiFi Standard IEEE802.11b/g/n
Data Rate 150Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Android/Linux
Frequency 2.4GHz Power Supply 3.3V
Size 12.0x12.0x1.8mm RF Chain 1T1R
Operating Temperature -5° Cto 55°C Storage Temperature -40° Cto 80°C

SDIO Wifi Module Features

Operate at ISM frequency bands (2.4GHz)

SDIO Interface for WiFi

IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,

Enterprise level security which can apply WPA/WPA2 certification for WiFi.

WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates

SDIO Wifi Module Application Range

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

Note
Dear customer,please contact sales if you would like to know more details about this sdio wifi module.
